Figure 6
From: High-order mode suppression in double-clad optical fibers by adding absorbing inclusions

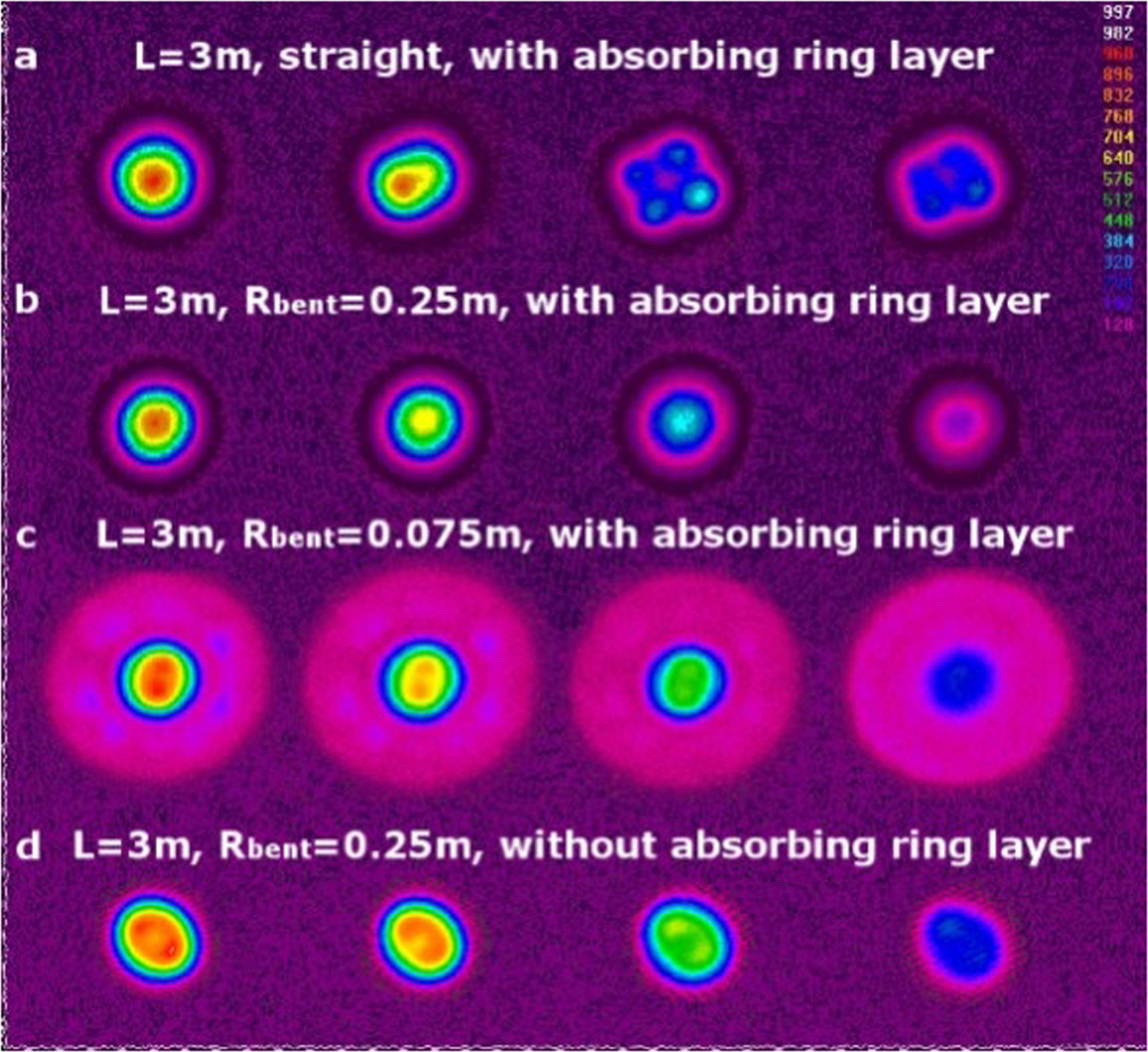

Measured core mode composition of the 45/125 μm fiber with/without an absorbing layer. The images from left to right correspond to monotonic shifts in the excitation beam from the coaxial position to the off-center position.
