Figure 10
From: Biopolymer-coated gold nanoparticles inhibit human insulin amyloid fibrillation

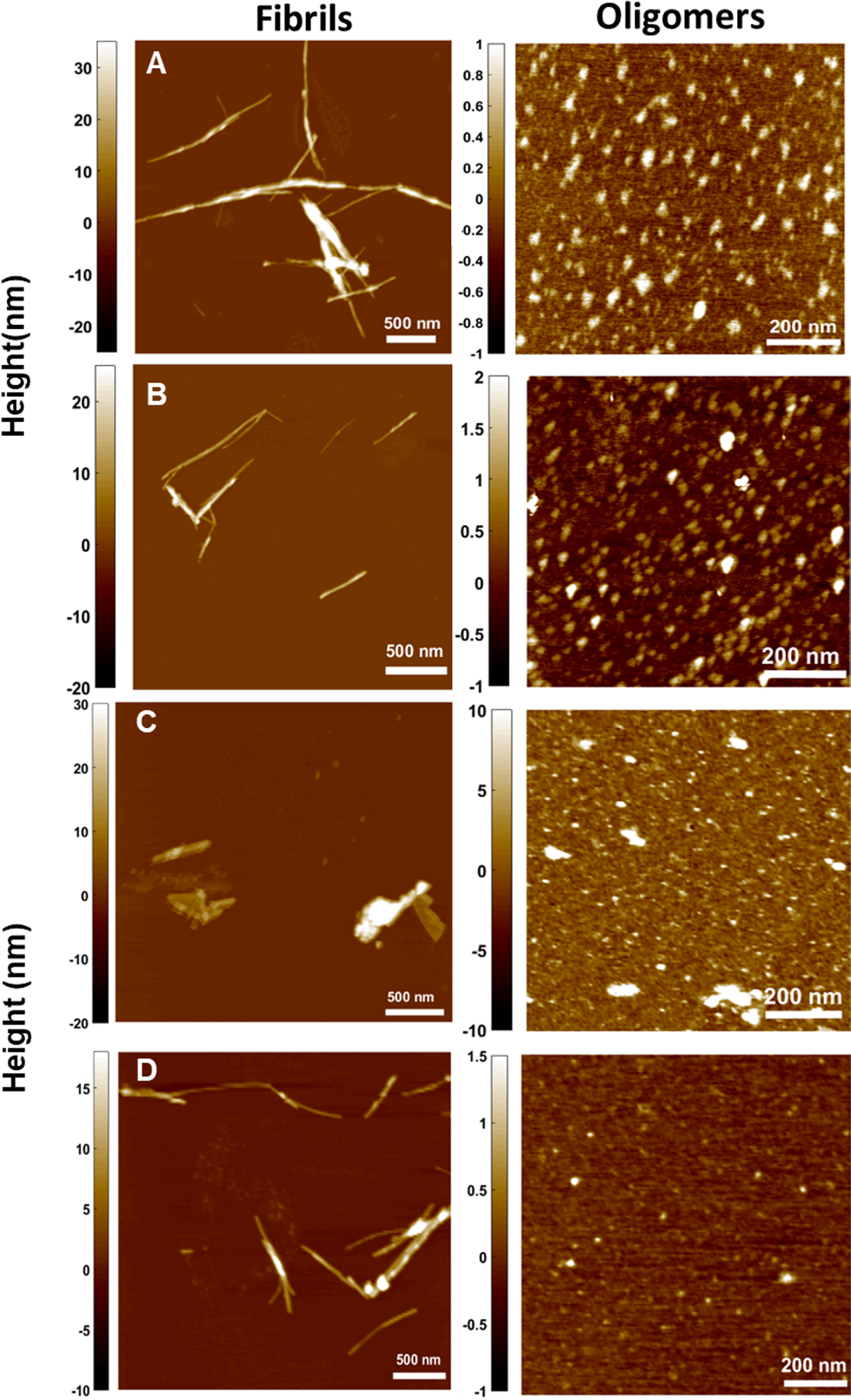

AFM images showing fibrils (left) and oligomers (right) of the insulin samples in the presence of (A) Dex-40, (B) Dex-10, (C) Dxt and (D) Cht-AuNPs after 3 h incubation at 65 °C (AuNPs concentration = 100 nM). The color scale on the right represents the height information in nm.
