Figure 4 | Scientific Reports

Figure 4

From: The accuracy of auditory spatial judgments in the visually impaired is dependent on sound source distance

Figure 4

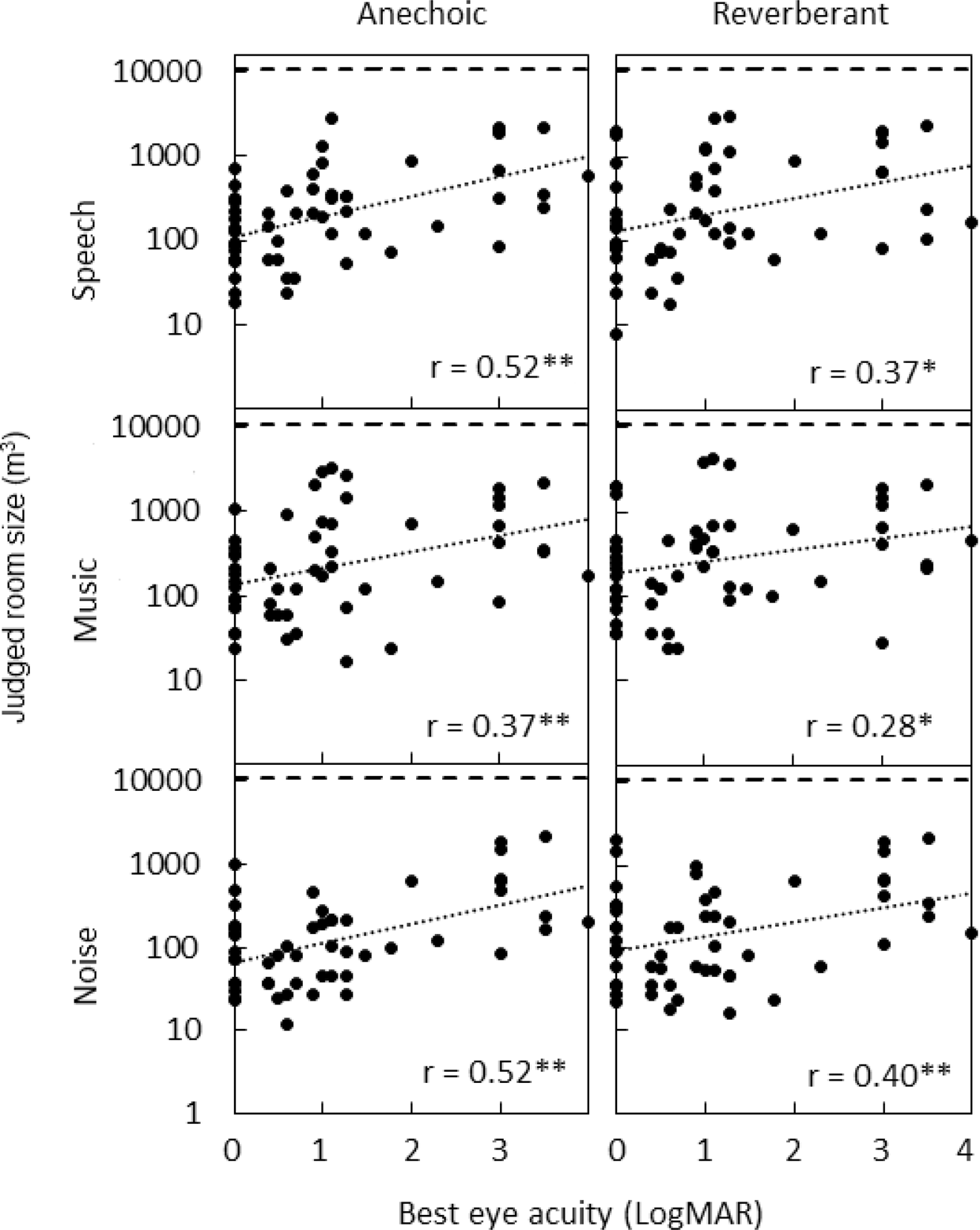

Individual judged room size estimates plotted against best eye visual acuity. Rows of panels from top to bottom show results for speech, music, and noise. The left and right columns show results for anechoic and reverberant simulated rooms, respectively. Linear fits to the data are shown by dotted lines. Veridical room size is indicated by the long-dashed lines (room size = 10500 m3). r values are shown in the bottom-right corner of each panel.
