Figure 2
From: Experimental demonstration of broadband impedance matching using coupled electromagnetic resonators

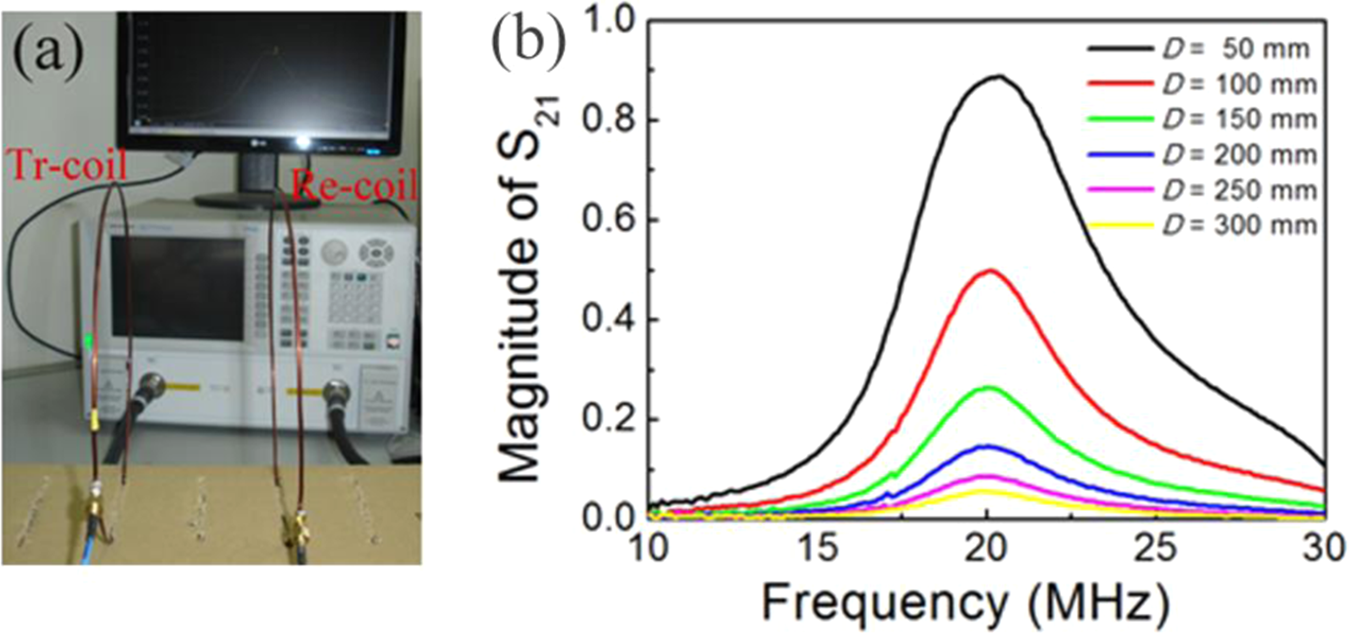

(a) Photograph of the two-coil system and the measurement equipment used. The left coil is the transmitting coil and the right coil is the receiving coil. The coupling distance D between the transmitting and receiving coils can be tuned. (b) Measured values of scattering parameter S21 at various coupling distances.
