Figure 1
From: Graphene Oxide Papers in Nanogenerators for Self-Powered Humidity Sensing by Finger Tapping

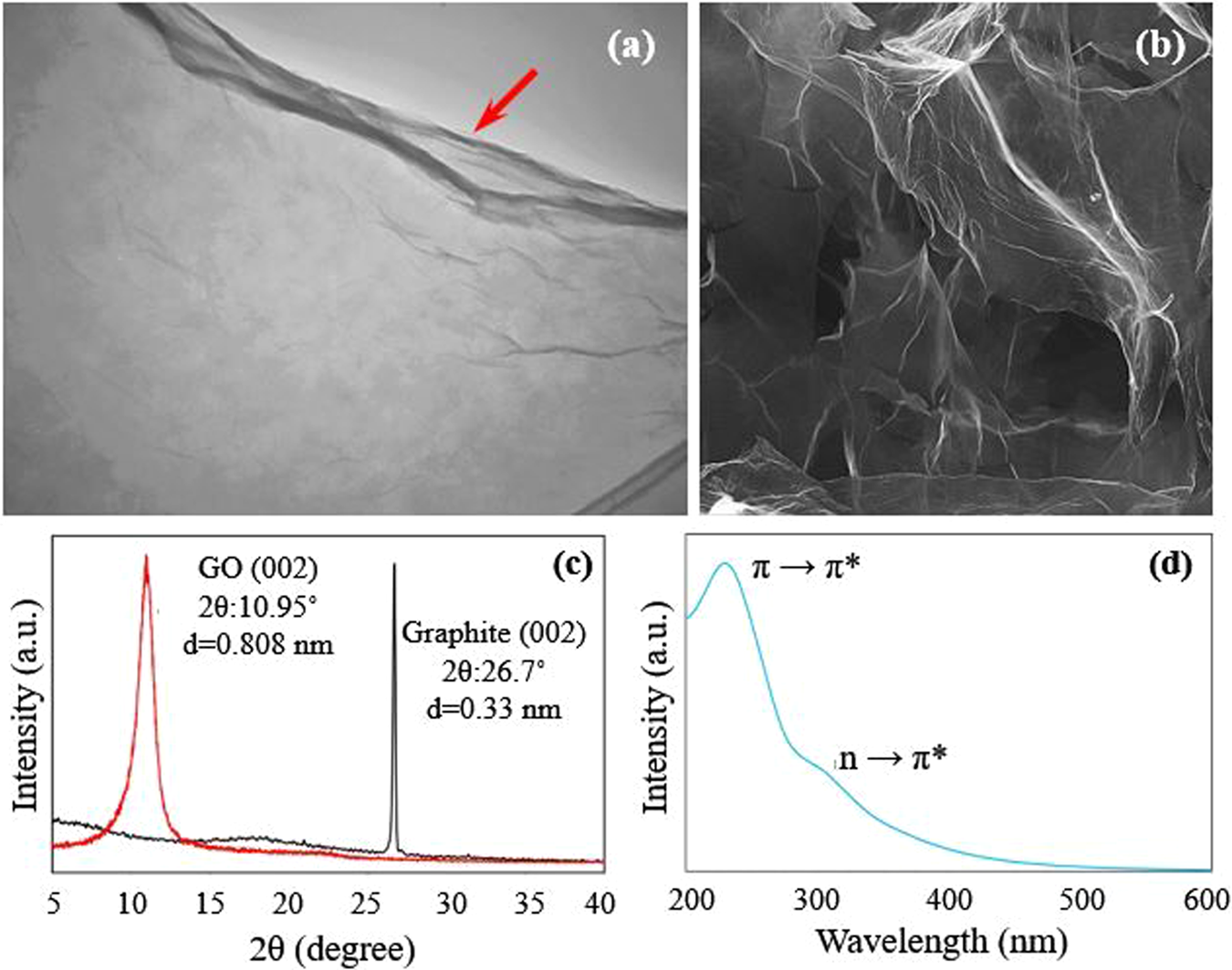

Characterization of GO suspension. (a) TEM and (b) SEM images of the prepared GO nanosheets. (c) XRD pattern of GO nanosheets compared to primary graphite powder. (d) UV-Vis absorption spectrum of GO sheets.
