Figure 6
From: Graphene Oxide Papers in Nanogenerators for Self-Powered Humidity Sensing by Finger Tapping

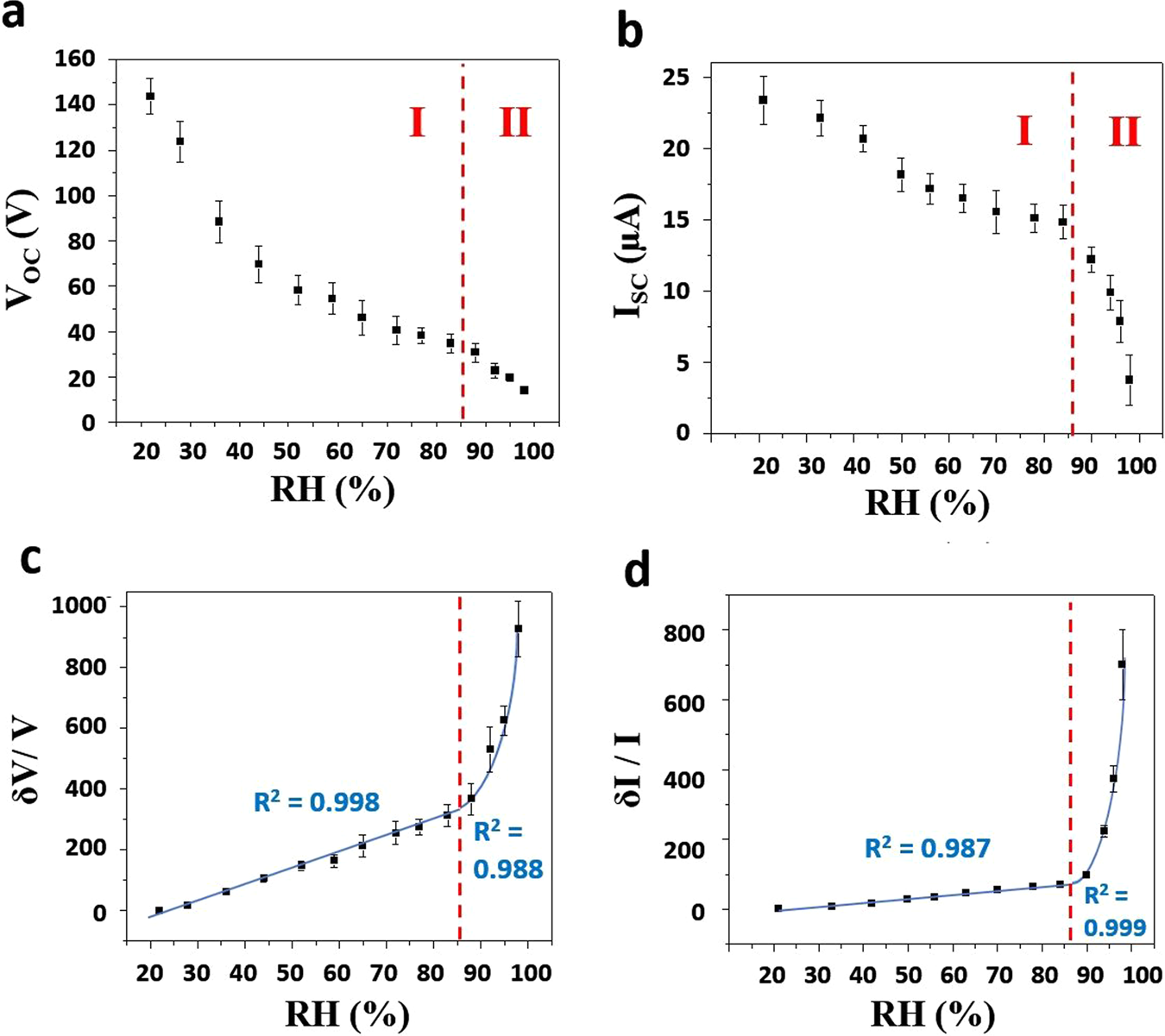

Sensing diagrams. Variation of the open-circuit voltage (a) and the short-circuit current (b) versus RH. The response voltage (c) and current (d) diagrams for different amounts of RH.
