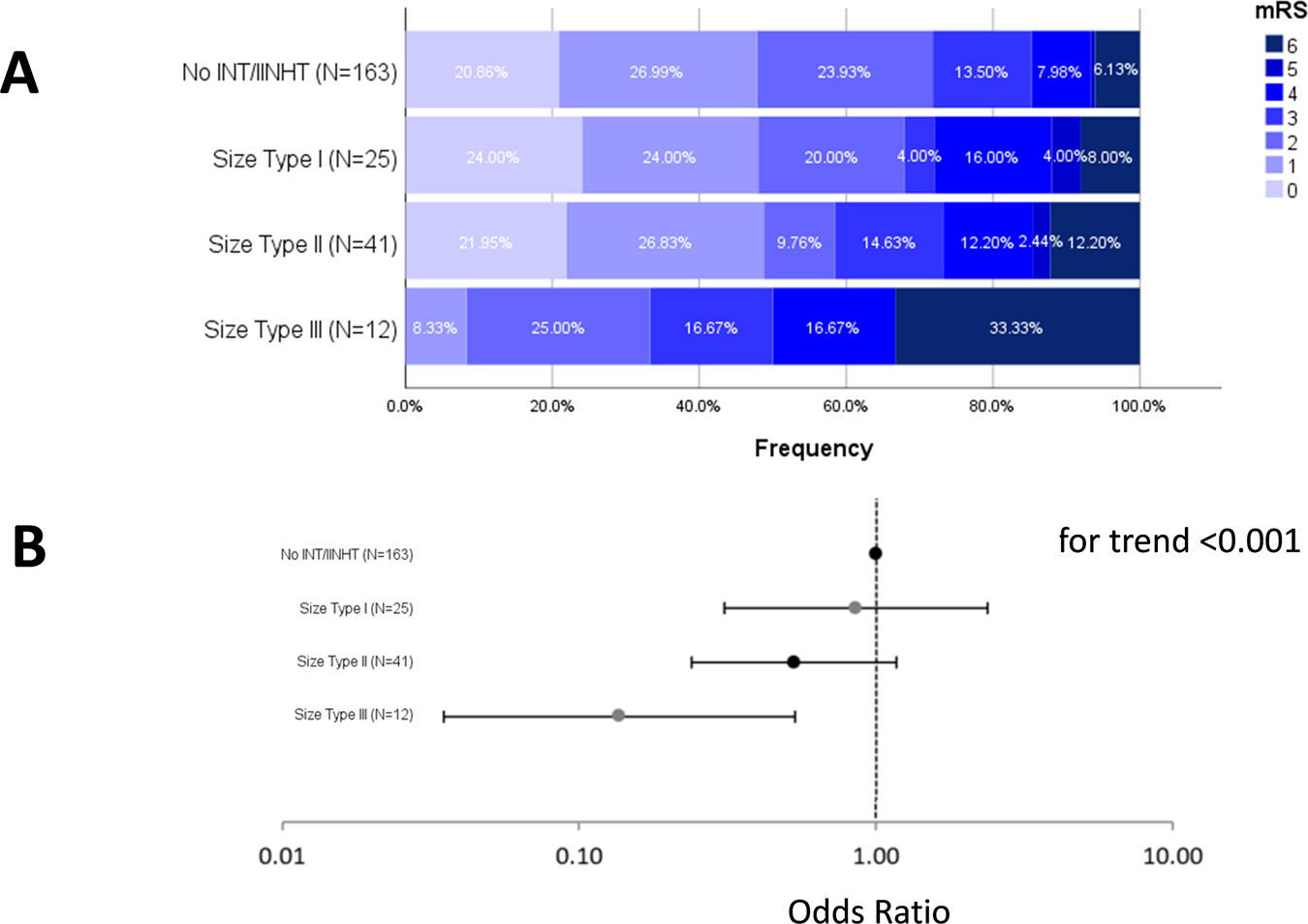

Figure 5
From: Infarct in new territory after endovascular stroke treatment: A diffusion-weighted imaging study
Outcome of patients with strata of INT/IINHT and their size. (A) Increased INT/IINHT size was associated with worse outcome; for classification purposes patients with multiple INT/IINHT received the class according to their largest size. (B) Odds Ratios for mRS 0–2 (comparator: no INT/IINHT) derived from binary logistic regression with functional independence as dependent variable (cf. methods for covariates in the model). P for trend was evaluated using an extended Mantel Haenszel chi-square for linear trend (one degree of freedom) including a continuity correction. The adjusted Odds Ratio per size increment was aOR 0.63, 95% CI 0.46–0.86.
