Figure 8 | Scientific Reports

Figure 8

From: CNN-Peaks: ChIP-Seq peak detection pipeline using convolutional neural networks that imitate human visual inspection

Figure 8

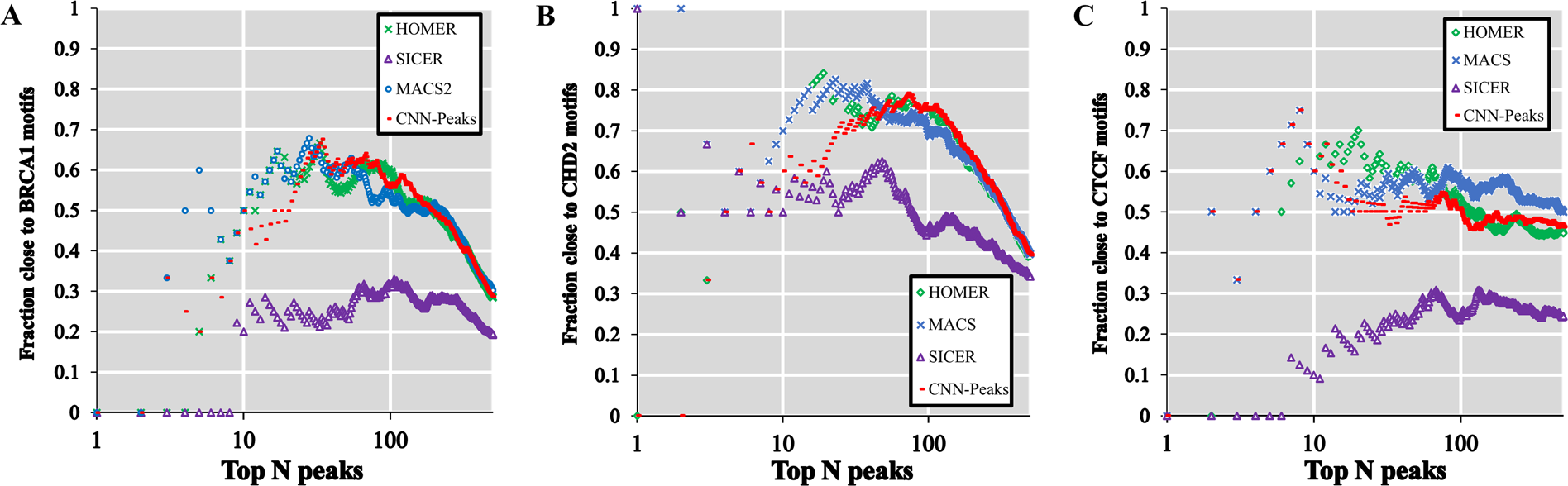

(A) Fraction of top N peaks within BRCA1 motif from the GM12878 cell line, (B) within CHD2 motif from K562 cell line and (C) within CTCF motif from the HepG2 cell line. Top N peaks were determined by scoring peaks called by each software. Each plot shows motif enrichment from transcription factor ChIP-seq data for BRCA1, CHD2, and CTCF respectively.
