Figure 3

From: Clinical utility and cost-effectiveness of bacterial 16S rRNA and targeted PCR based diagnostic testing in a UK microbiology laboratory network

Figure 3

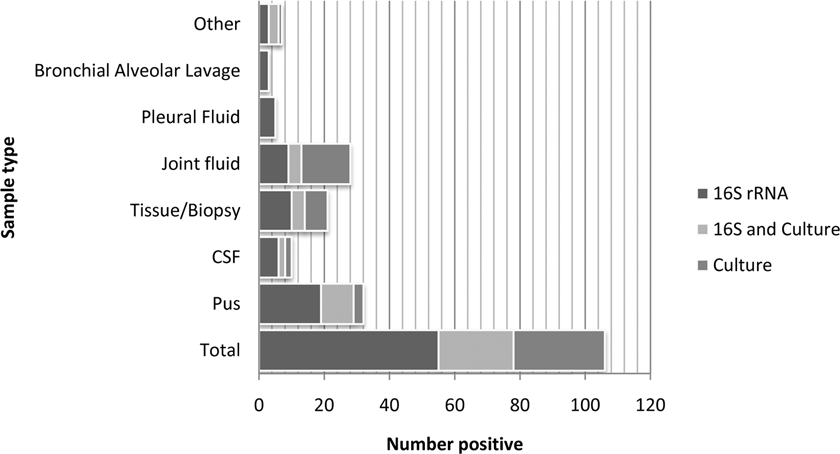

(a) Positive results by 16S rRNA PCR and microbiological culture by sample type at a London NHS laboratory network, April 2015 and April 2019. Abbreviations: ribosomal Ribonucleic Acid (rRNA), Polymerase Chain Reaction (PCR), Cerebrospinal Fluid (CSF). (b) Positive results by 16S rRNA PCR and targeted PCR by sample type at a London NHS laboratory network, April 2015 and April 2019. Abbreviations: ribosomal Ribonucleic Acid (rRNA), Polymerase Chain Reaction (PCR), Cerebrospinal Fluid (CSF). (c) Positive results by targeted PCR and microbiological culture by sample type at a London NHS laboratory network, April 2015 and April 2019. Abbreviations: Polymerase Chain Reaction (PCR), Cerebrospinal Fluid (CSF).
