From: Tuning Penta-Graphene Electronic Properties Through Engineered Line Defects

Figure 1

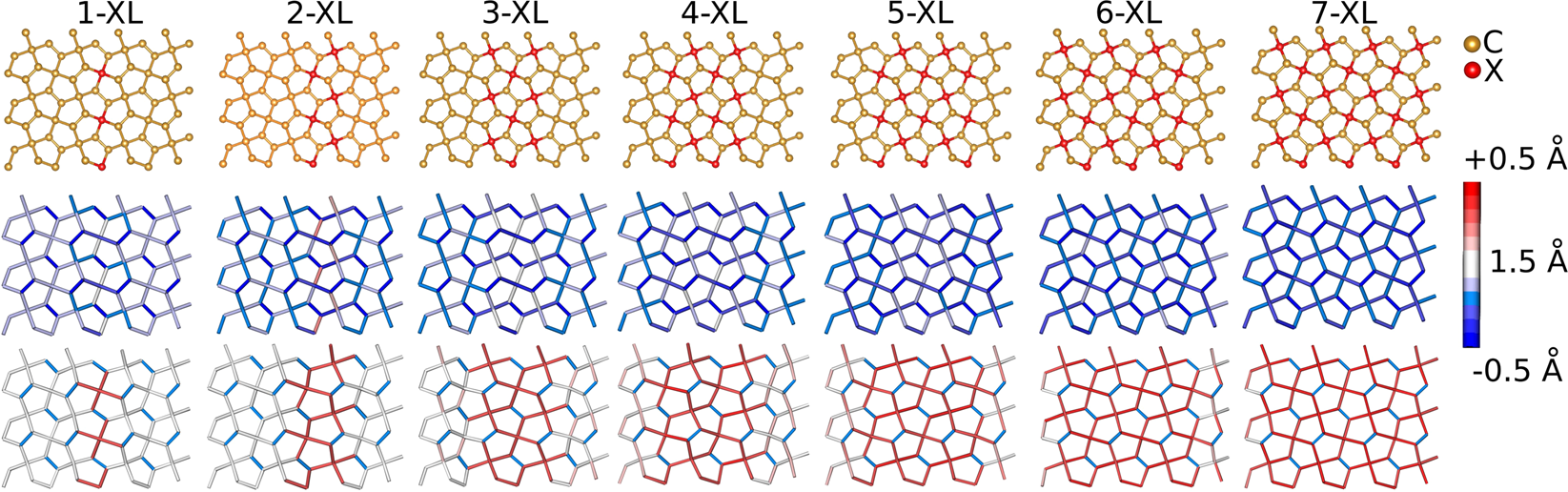

(Top) Schematic representation for the sp3-like carbons doping strategy. The red color represents the doping atoms (N or Si). Bond length variations for penta-graphene lattices with Nitrogen (Middle) and Silicon (Bottom) doping schemes. In the color palette on the right, the equilibrium distance is 1.575 Å. The maximum deviations are 0.5 Å for Nitrogen and 1.5 Å for Silicon doping schemes.
