Figure 3
From: Tuning Penta-Graphene Electronic Properties Through Engineered Line Defects

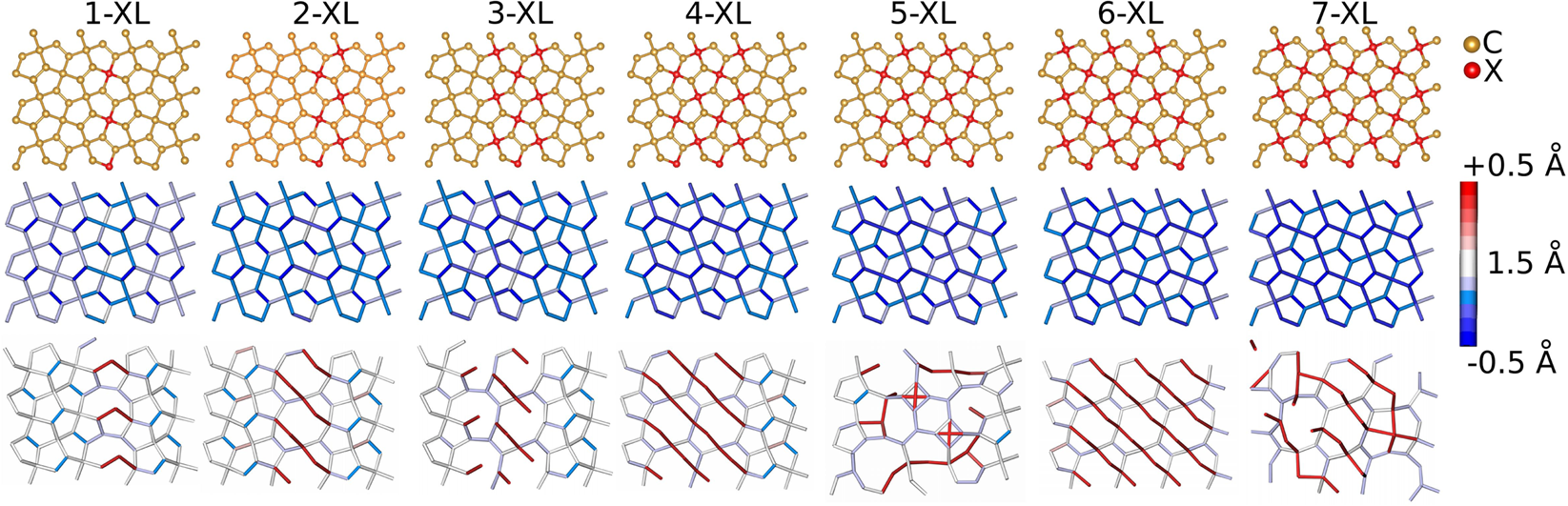

(Top) Schematic representation for penta-graphene lattices with sp2-like carbons doping strategy. The red color represents the doping atoms (N or Si). Bond length variations for penta-graphene lattices resulting from Nitrogen doping (Middle) and Similar Silicon doping scheme (Bottom). In the color palette on the right, the equilibrium distance is 1.575 Å. The maximum deviations are 0.5 Å for Nitrogen and 1.5 Å for Silicon doping schemes.
