Figure 12
From: Evaluating White Matter Lesion Segmentations with Refined Sørensen-Dice Analysis

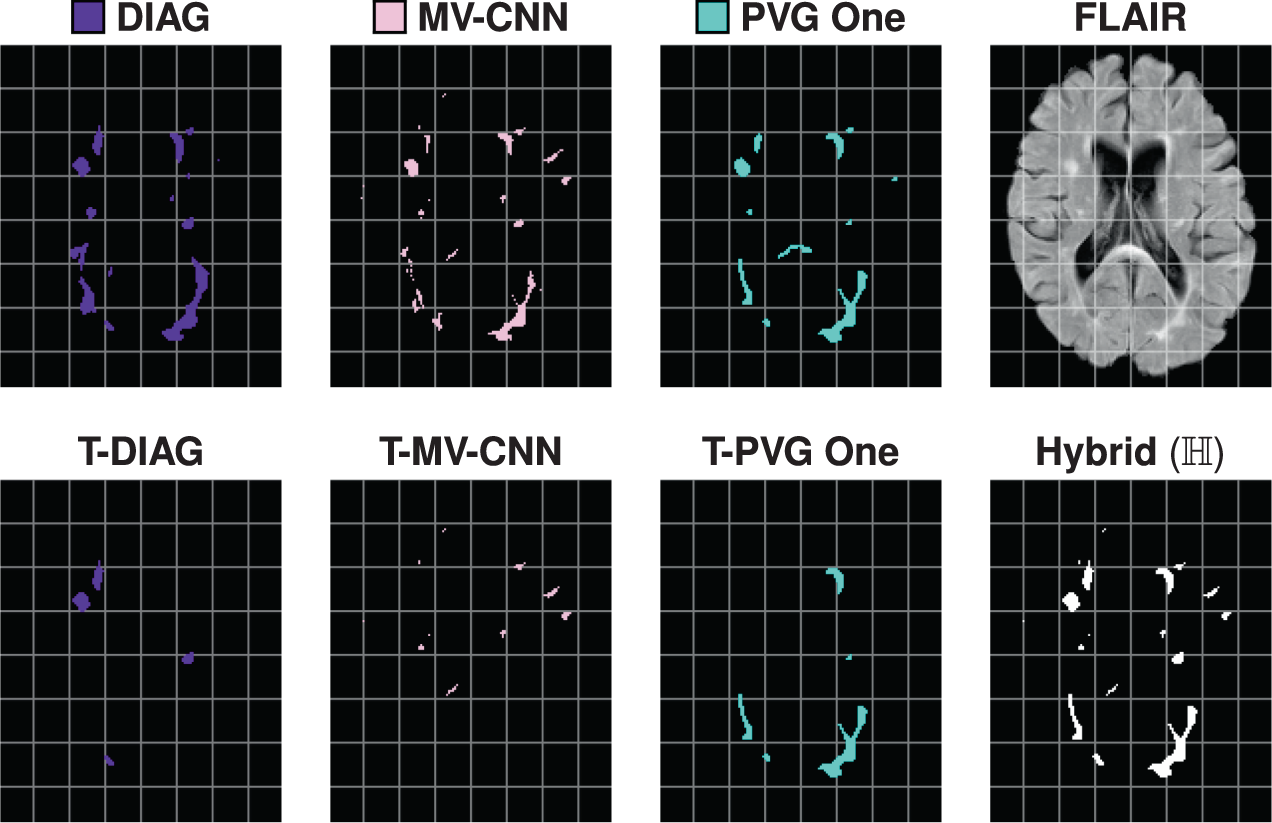

For a test data set, in the top row, we show the axial slices of the DIAG, MV-CNN, and PVG One segmentations, and the corresponding FLAIR image. In the second row, we show the volume thresholded version of DIAG (T-DIAG), MV-CNN (T-MV-CNN), and PVG One (T-PVG One), after the corresponding thresholds have been applied from the 2-Fold variety of our hybrid algorithm. The final image in the second row is the segmentation generated from the union of these results and is denoted Hybrid (\({\mathbb{H}}\)). For this subject, the IMI algorithm did not contribute any lesions and the corresponding images are not displayed.
