Figure 6 | Scientific Reports

Figure 6

From: Autologous fecal transplantation from a lean state potentiates caloric restriction effects on body weight and adiposity in obese mice

Figure 6

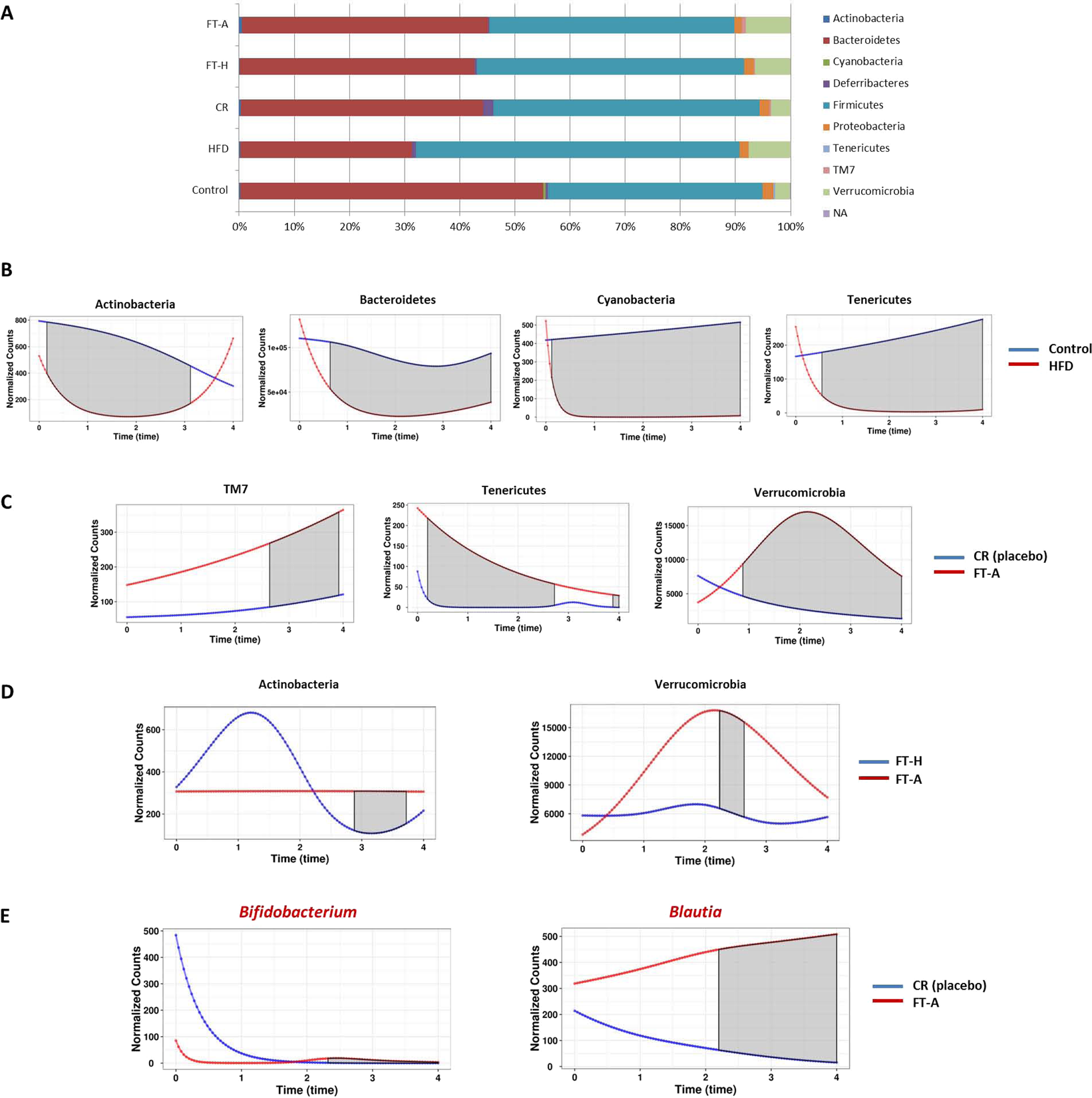

Effects of FMT on gut microbiota composition at phylum and genera level. (A) Relative abundance of major bacterial phyla present in gut expressed as percentage at the end of the experimental period (T = 4) (B) Temporal dynamics of gut phyla that resulted statistical significant comparing the control and HFD mice. (C) Temporal dynamics of gut phyla that resulted statistical significant comparing the CR and autologous transplanted mice (CR vs. FT-A). (D) Temporal dynamics of gut phyla that resulted statistical significant when comparing the heterologous and autologous transplanted mice (FT-H vs. FT-A). (E) Temporal dynamics of gut bacterial genera that resulted statistical significant comparing the CR and autologous transplanted mice (CR vs. FT-A). The shaded area in gray means the time interval where the corresponding taxonomic group is significantly different among the two groups of mice and was calculated by the MetaLonDA R-package.
