Figure 2 | Scientific Reports

Figure 2

From: Reference Ranges for Left Ventricular Curvedness and Curvedness-Based Functional Indices Using Cardiovascular Magnetic Resonance in Healthy Asian Subjects

Figure 2

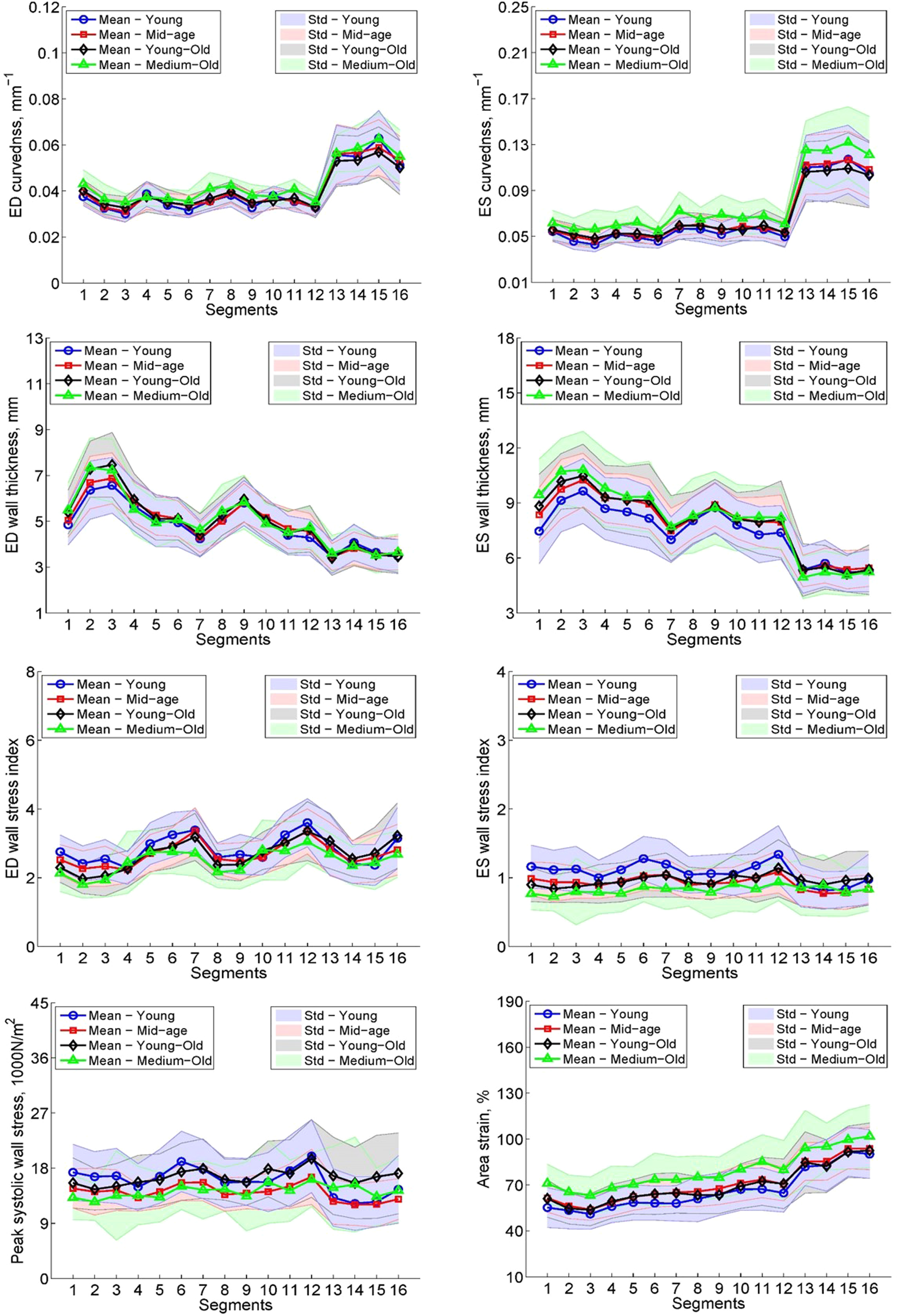

Shaded error plots for the four age groups of regional parameters vs segment. First row: curvedness at ED (left) and ES (right) vs segments, second row: wall thickness at ED (left) and ES (right) vs segments, third row: wall stress index at ED (left) and ES (right) vs segments, last row: peak systolic wall stress (left) and area strain (right) vs segments. Young: ≤44 years; Mid-age: 45–64 years; Young-Old: 65–74 years; Medium-Old: 75–84 years. ED: end-diastole; ES: end-systole; Std: standard deviation. Solid line represents mean value, shaded region represents standard deviation.
