Figure 5 | Scientific Reports

Figure 5

From: Reference Ranges for Left Ventricular Curvedness and Curvedness-Based Functional Indices Using Cardiovascular Magnetic Resonance in Healthy Asian Subjects

Figure 5

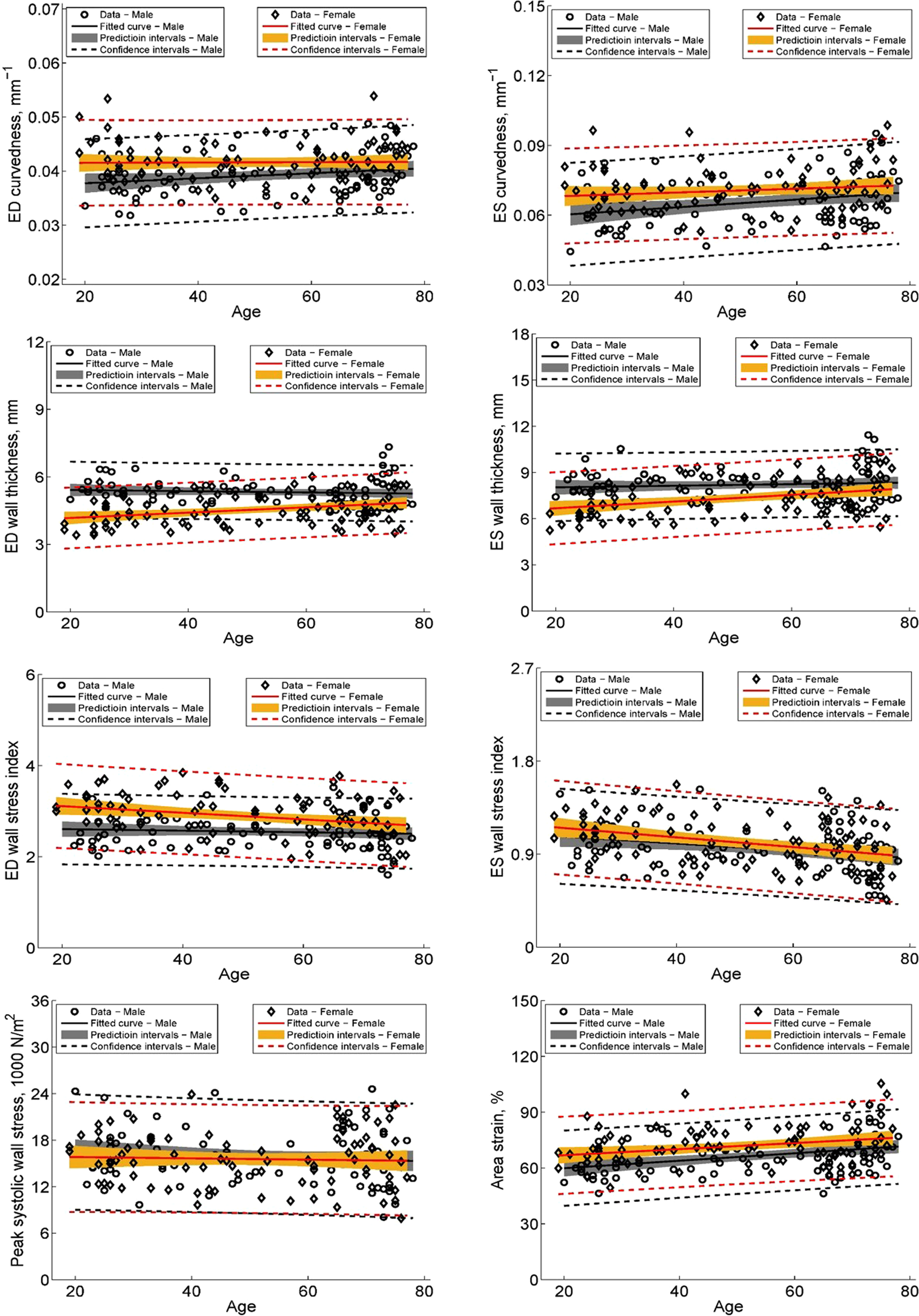

Linear regression plots of regional parameters vs age. First row: curvedness at ED (left) and ES (right) vs age, second row: wall thickness at ED (left) and ES (right) vs age, third row: wall stress index at ED (left) and ES (right) vs age, last row: peak systolic wall stress (left) and area strain (right) vs age. ED: end-diastole; ES: end-systole. Dash line represents 95% confidence interval (CI), shaded region represents 95% CIs for predicted values with linear regression.
