Figure 6 | Scientific Reports

Figure 6

From: Reference Ranges for Left Ventricular Curvedness and Curvedness-Based Functional Indices Using Cardiovascular Magnetic Resonance in Healthy Asian Subjects

Figure 6

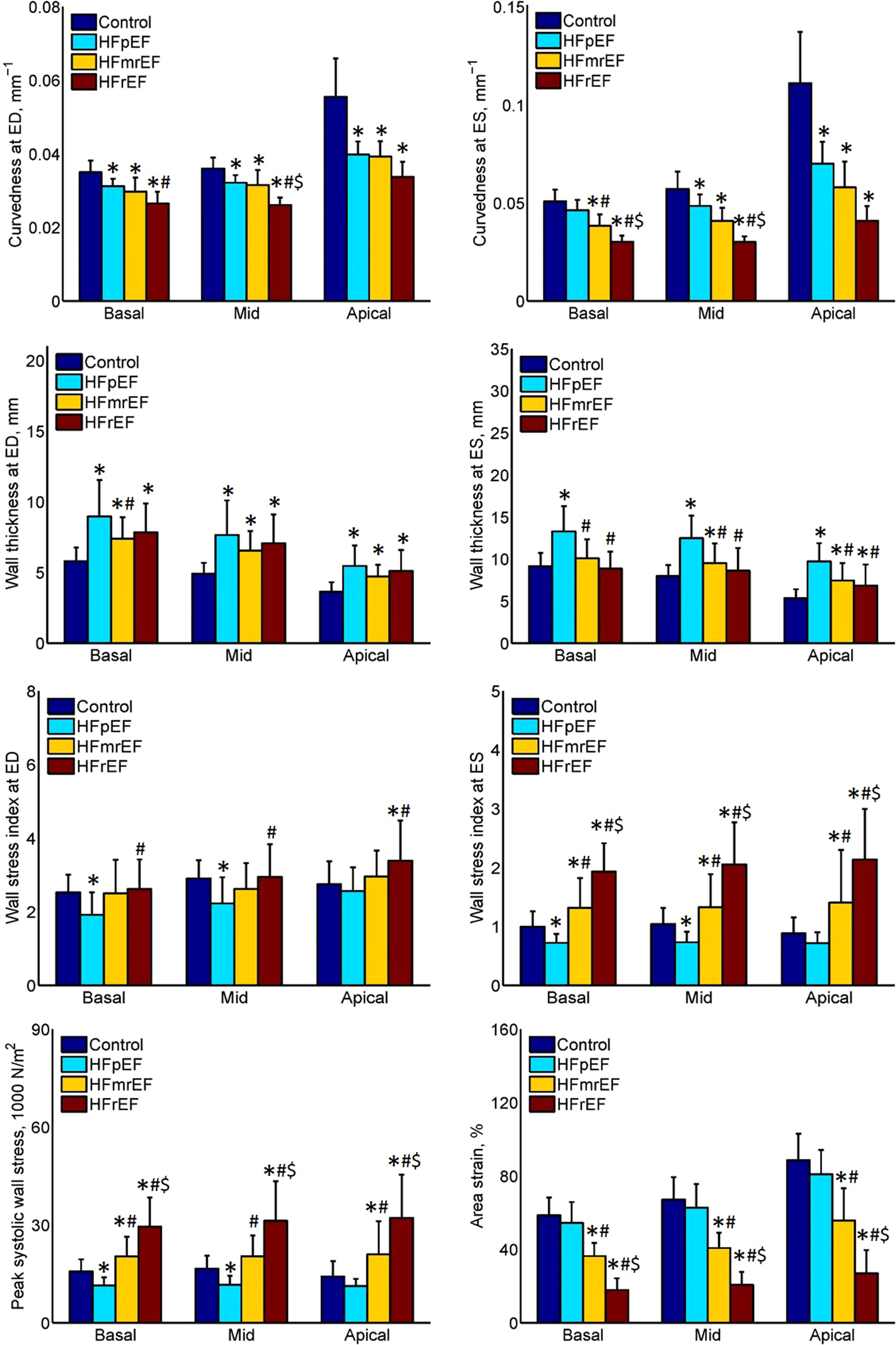

Bar chart comparison of aggregated means at basal, mid and apical levels between Control (n=171), HFpEF (n=10), HFmrEF (n=10) and HFrEF (n=10) groups. First row: curvedness at ED (left) and ES (right), second row: wall thickness at ED (left) and ES (right), third row: wall stress index at ED (left) and ES (right), last row: peak systolic wall stress (left) and area strain (right). HF: heart failure; EF: ejection fraction; HFpEF: HF with preserved EF; HFmrEF: HF with mid-range EF; HFrEF: HF with reduced EF; ED: end-diastole; ES: end-systole. *Significant difference compared to Control; #significant difference compared to HFpEF; $significant difference compared to HFmrEF.
