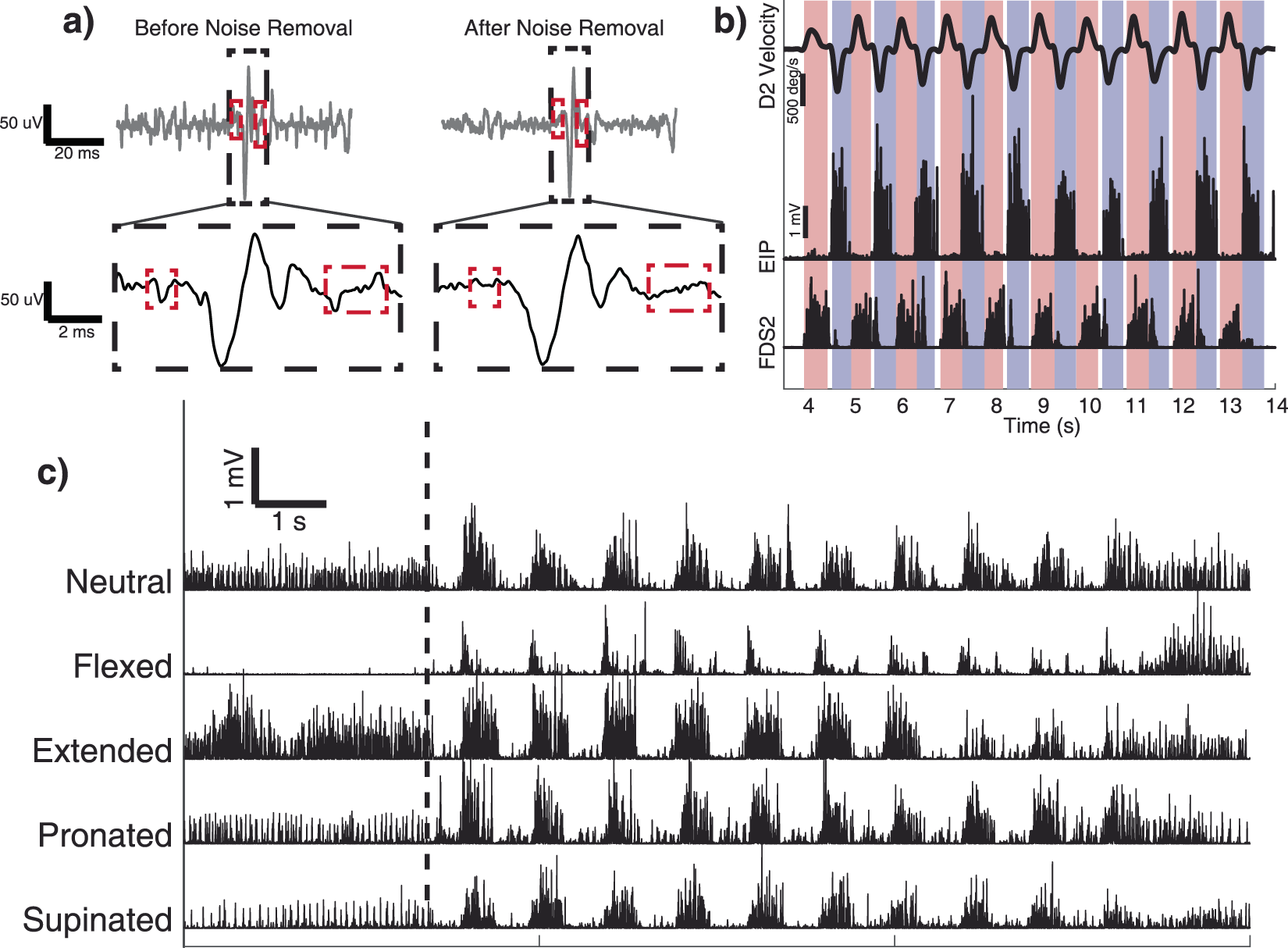

Figure 2
From: The effect of wrist posture on extrinsic finger muscle activity during single joint movements
Overview of data processing and effects of wrist posture on EMG activity. (a) Comparison of EMG activity during rest before (left) and after (right) electromagnetic noise removal. Blocked in red are examples of electromagnetic artifacts introduced by the kinematic tracking system and the same signal after electromagnetic artifact removal. Left: EMG activity after high-pass filtering to remove DC offset and motion artifacts. The electromagnetic artifacts can be observed boxed in red. Right: The same EMG activity after electromagnetic noise removal. (b) D2 metacarpal-phalangeal joint velocity and EMG activity of EIP and FDS2 during repeated flexion (red) and extension (blue) movements. The unshaded region between movements represents brief holding periods that were not included in calculations of EMG activity. (c) Rectified and processed EMG activity of ED4 during repetitions of D4 flexion and extension in neutral, flexed, extended, pronated, and supinated postures. The dashed vertical line shows the task start cue. The hand was held in these static postures for approximately 4 seconds before performing 10 movement repetitions. Note the substantial change in EMG activity for the same finger movement in different wrist postures.
