Figure 6
From: Dynamical Behavior of Coal Shearer Traction-swing Coupling under Corrected Loads

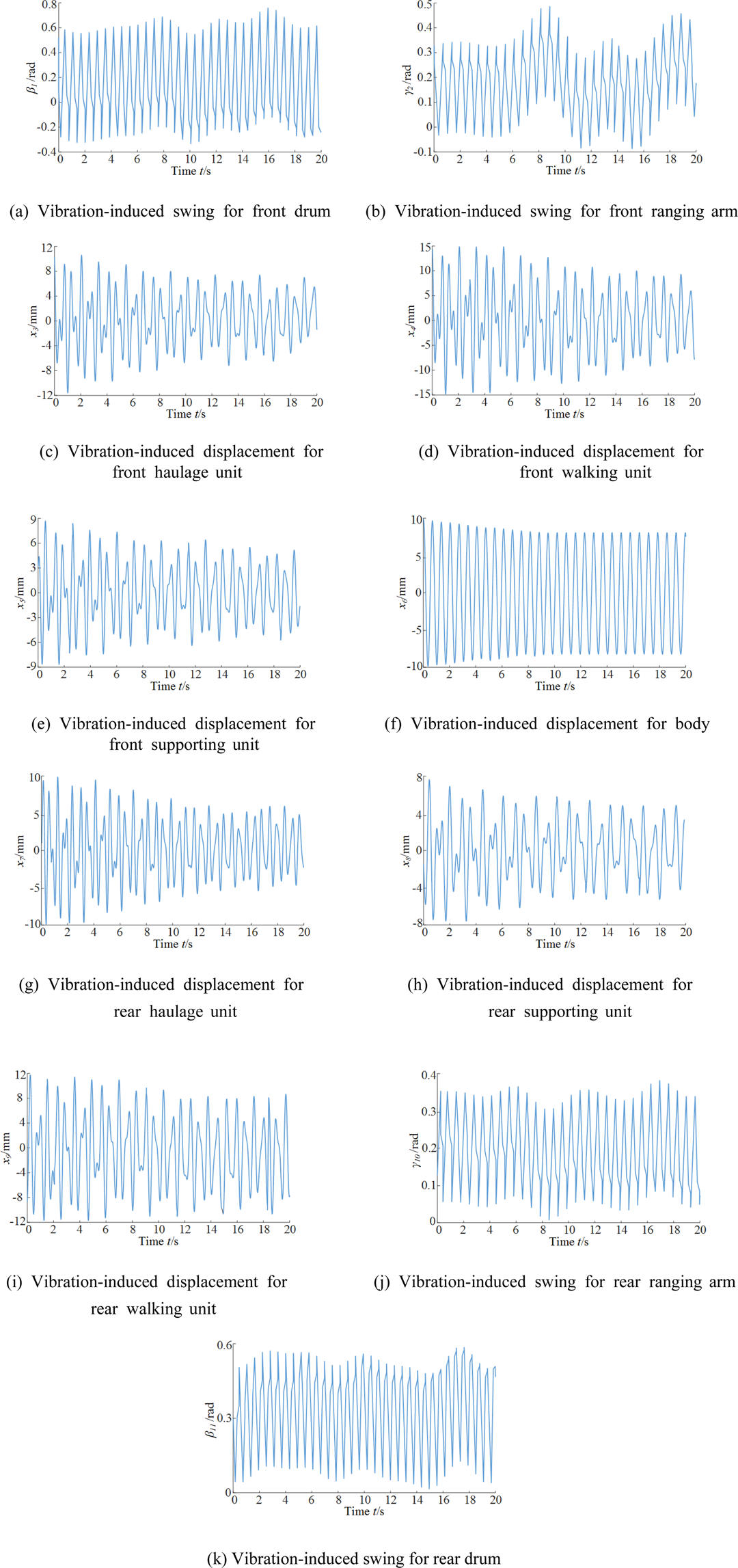

Time curves for the vibration-induced displacements/swings of critical shearer components. (a) Vibration-induced swing for front drum (b) Vibration-induced swing for front ranging arm. (c) Vibration-induced displacement for (d) Vibration-induced displacement for front haulage unit front walking unit (e) Vibration-induced displacement for (f) Vibration-induced displacement for body front supporting unit (g) Vibration-induced displacement for (h) Vibration-induced displacement for rear haulage unit rear supporting unit (i) Vibration-induced displacement for (j) Vibration-induced swing for rear ranging arm rear walking unit (k) Vibration-induced swing for rear drum.
