Figure 5
From: Partial Scanning Transmission Electron Microscopy with Deep Learning

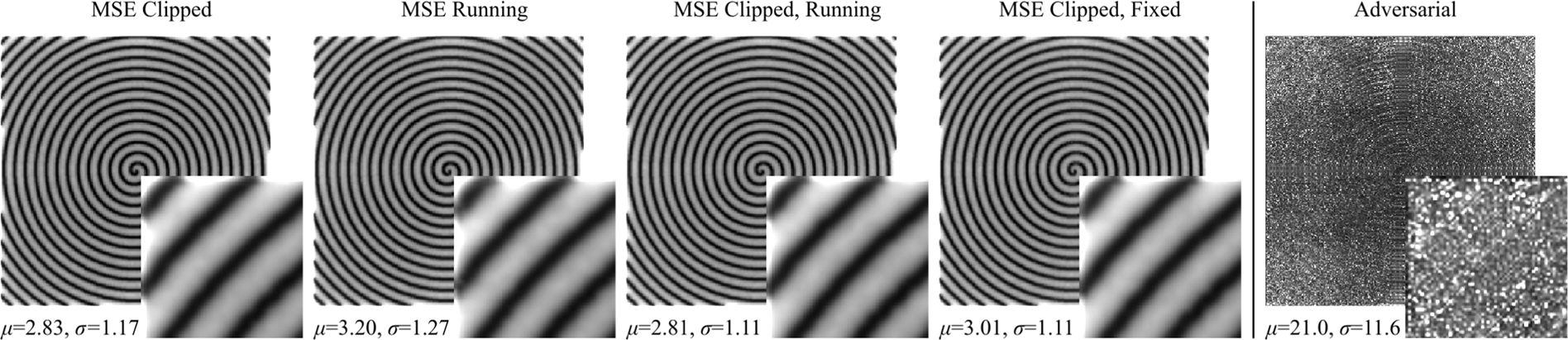

Generator mean squared errors (MSEs) at each output pixel for 20000 512 × 512 1/20 px coverage test set images. Systematic errors are lower near spiral paths for variants of MSE training, and are less structured for adversarial training. Means, μ, and standard deviations, σ, of all pixels in each image are much higher for adversarial outputs. Enlarged 64 × 64 regions from the top left of each image are inset to ease comparison, and to show that systematic errors for MSE training are higher near output edges.
