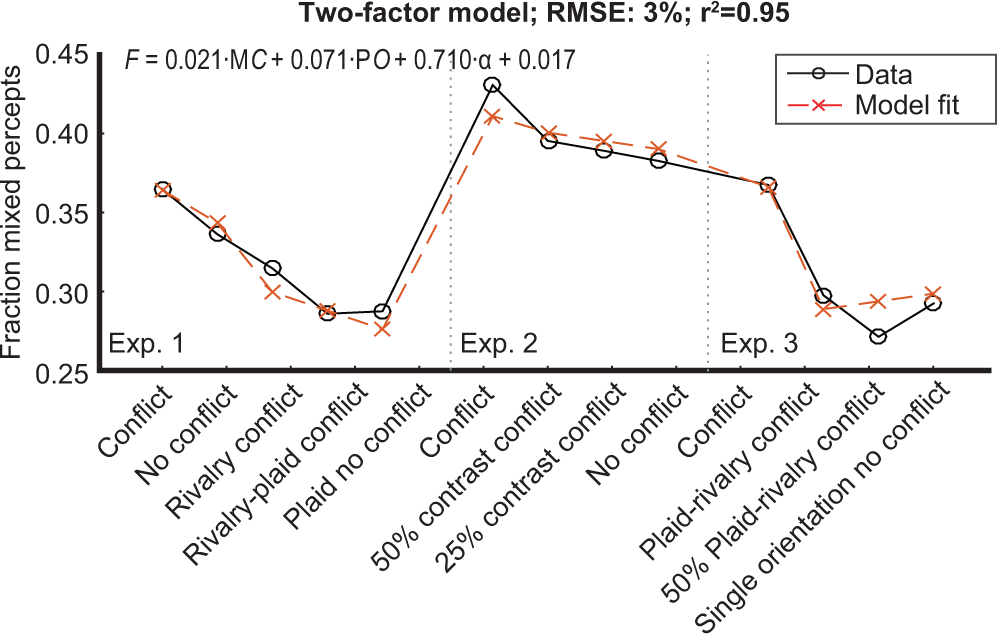

Figure 5
From: Adaptation to transients disrupts spatial coherence in binocular rivalry
General linear model results. Modelled fraction mixed percepts (dashed red crosses) across the conditions for all experiments as compared to ground truth results (solid black circles) with the factors monocular contrast and perceptual orientation (and an intercept per experiment). The formula is the result of a general linear model with F as fraction mixed percepts, C as the presence (1) or absence (0) of monocular contrast, O as the presence or absence of perceptual orientation transients, and α as the fraction mixed percepts of the conflict condition per experiment (see most left panels in plots (d) in Figs. 2–4) that served as an intercept to take into account group differences across experiments.
