Figure 8
From: Learned Representation of Implied Serial Order in Posterior Parietal Cortex

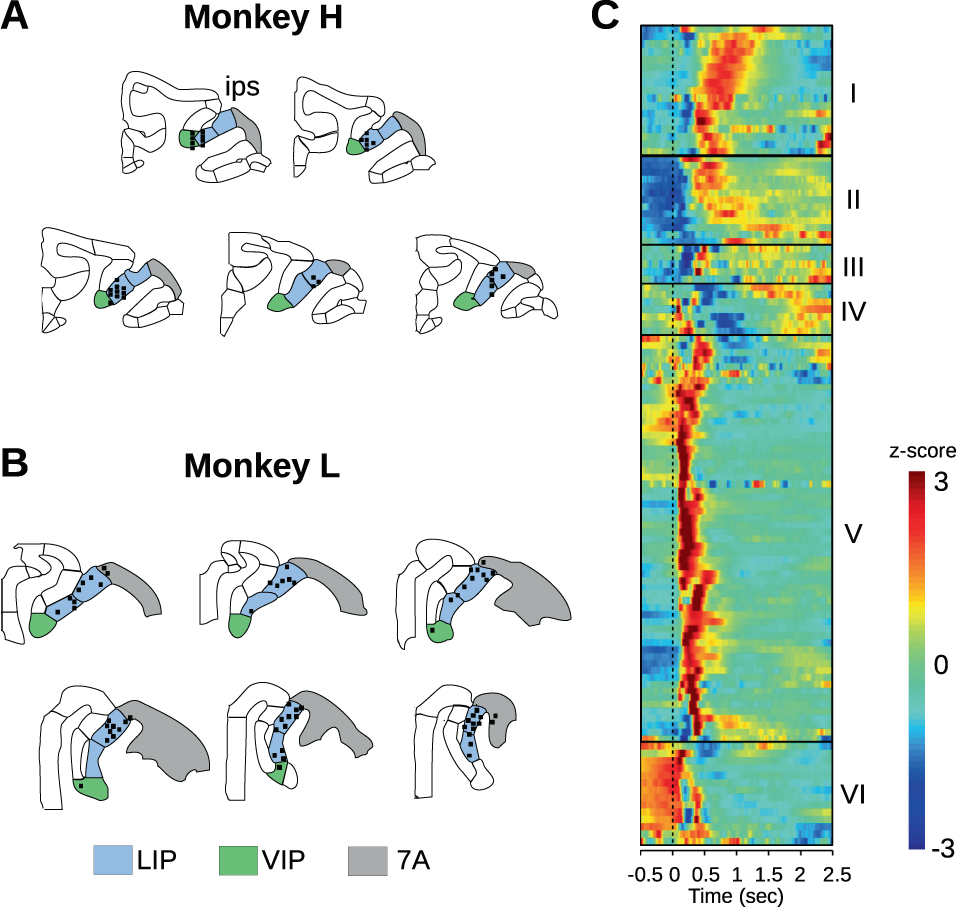

Reconstruction of recording sites and classification of neurons. (A,B) Anatomical reconstructions of recording sites (n = 91) were based on sterotaxic MR images, chamber implantation and angles, and matched to the rhesus macaque anatomical templates69. The templates were adapted to overlap over the MRI images plus the recording sites, which ranged from 6 mm posterior to 6 mm anterior to the interaural plane. Blue regions are area LIP, green is VIP, and gray is area 7a. (C) Six families of response types were found based on hierarchical clustering of mean firing rate vs. time, across all conditions. The neurons were optimally ordered using correlation similarity.
