Figure 2
From: Human metaphase chromosome consists of randomly arranged chromatin fibres with up to 30-nm diameter

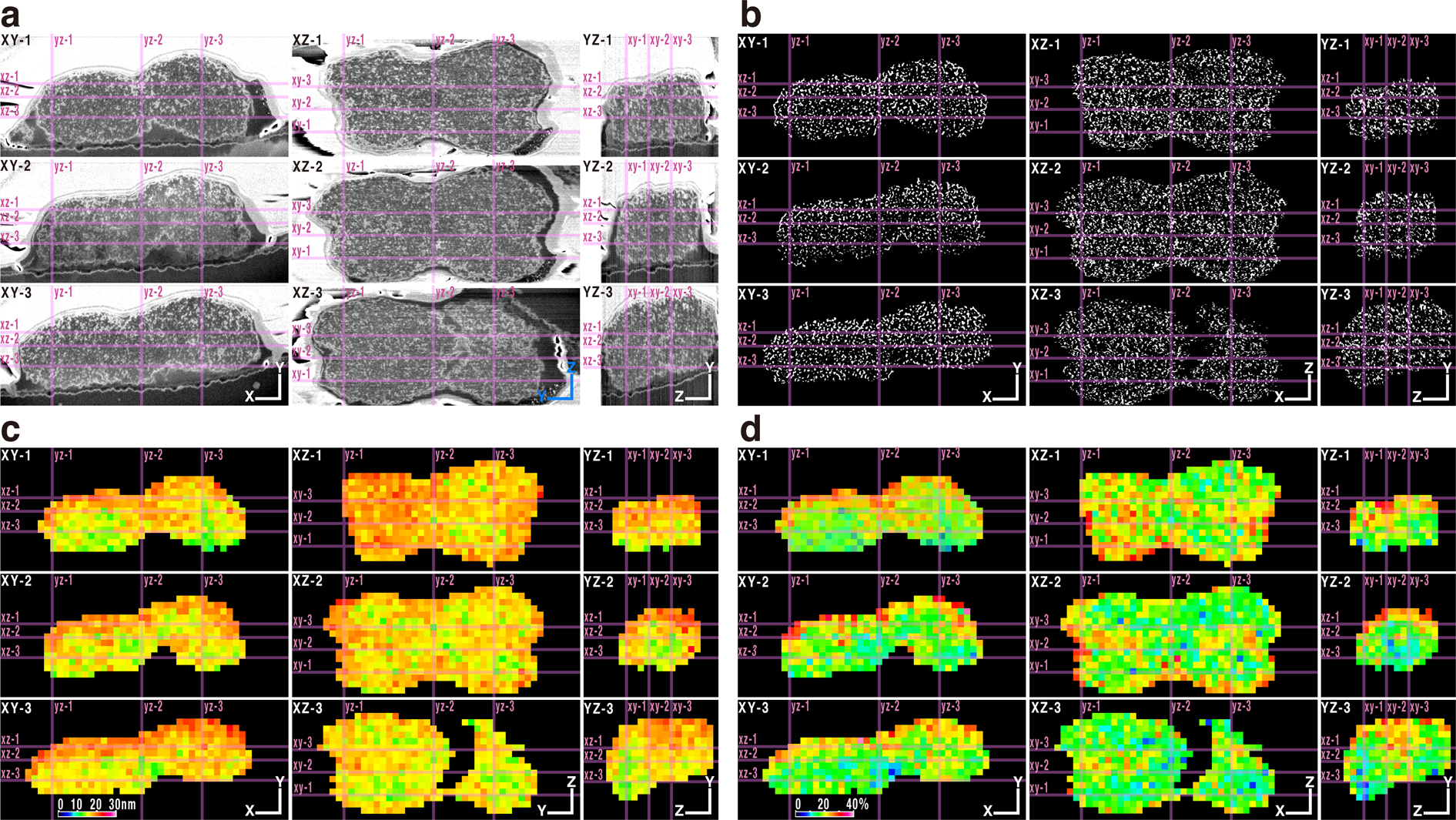

Chromosome cross-sections and heatmaps from three directions. (a), Cross-sectioned grey images from three different directions. (b), Cross-sectioned binary images. (c), Heatmaps of voxels (cubes 120-nm on each side) based on averaged diameters of chromatin fibres. (d), Heatmaps of voxels based on averaged volume (%) of chromatin fibres by using ImageJ 1.51 with an in-house macro script. Bar = 500 nm.
