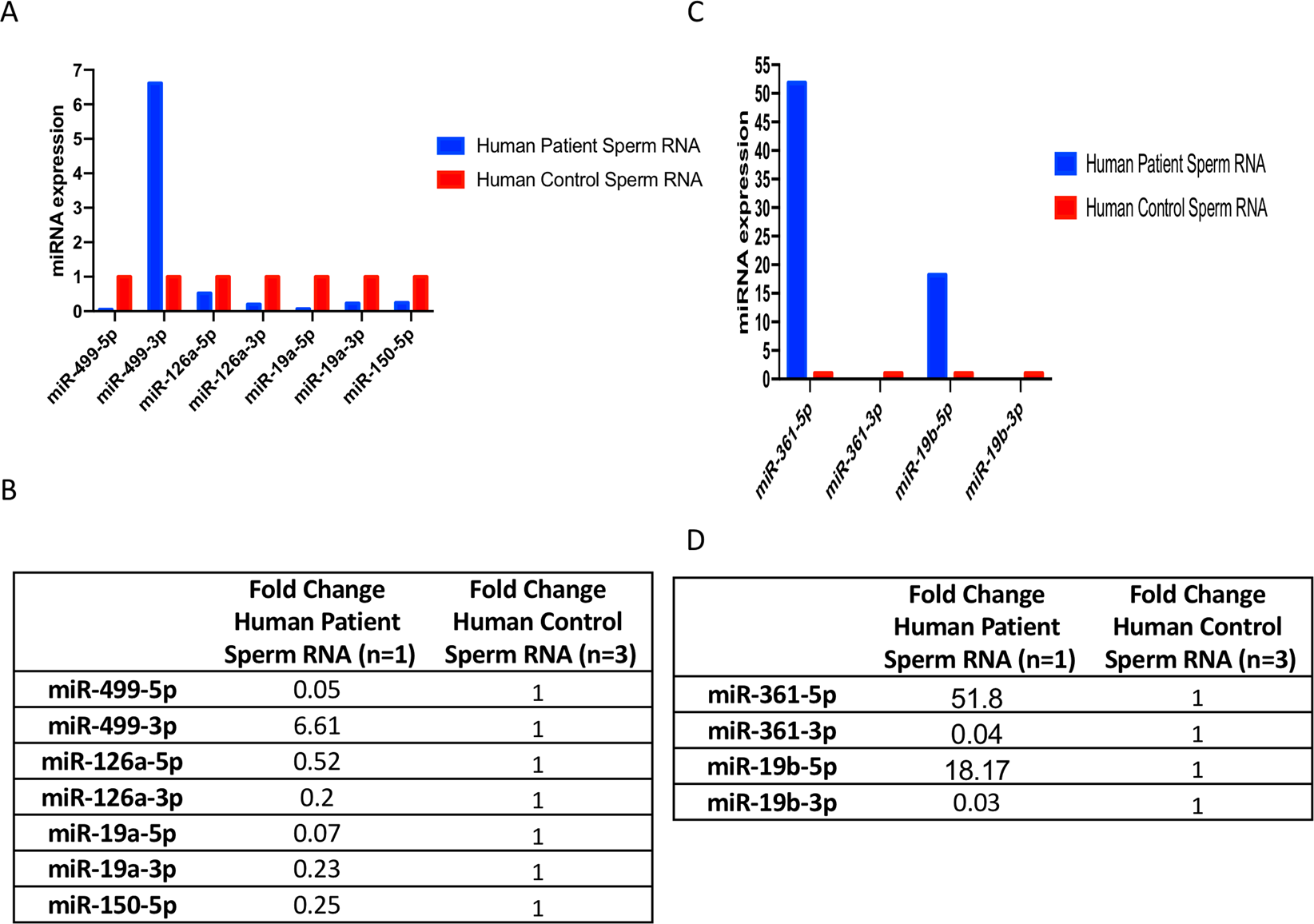

Figure 5
From: A heritable profile of six miRNAs in autistic patients and mouse models
Sperm profiles of the six-miRNAs in the father of three affected children. Sperm profiles of P13F (raw data) is presented for six-miRNAs in a father patient and the three sperm controls. Total sperm RNA was tested by qRT-PCR to determine the levels of the Six-microRNAs. The miRNA transcript profile of human sperm from P13F (the father of three children with distinct behavioral alterations born to different mothers) compared to three sperm sample controls is shown.
