Figure 3

From: Strong, tough and bio-degradable polymer-based 3D-ink for fused filament fabrication (FFF) using WS2 nanotubes

Figure 3

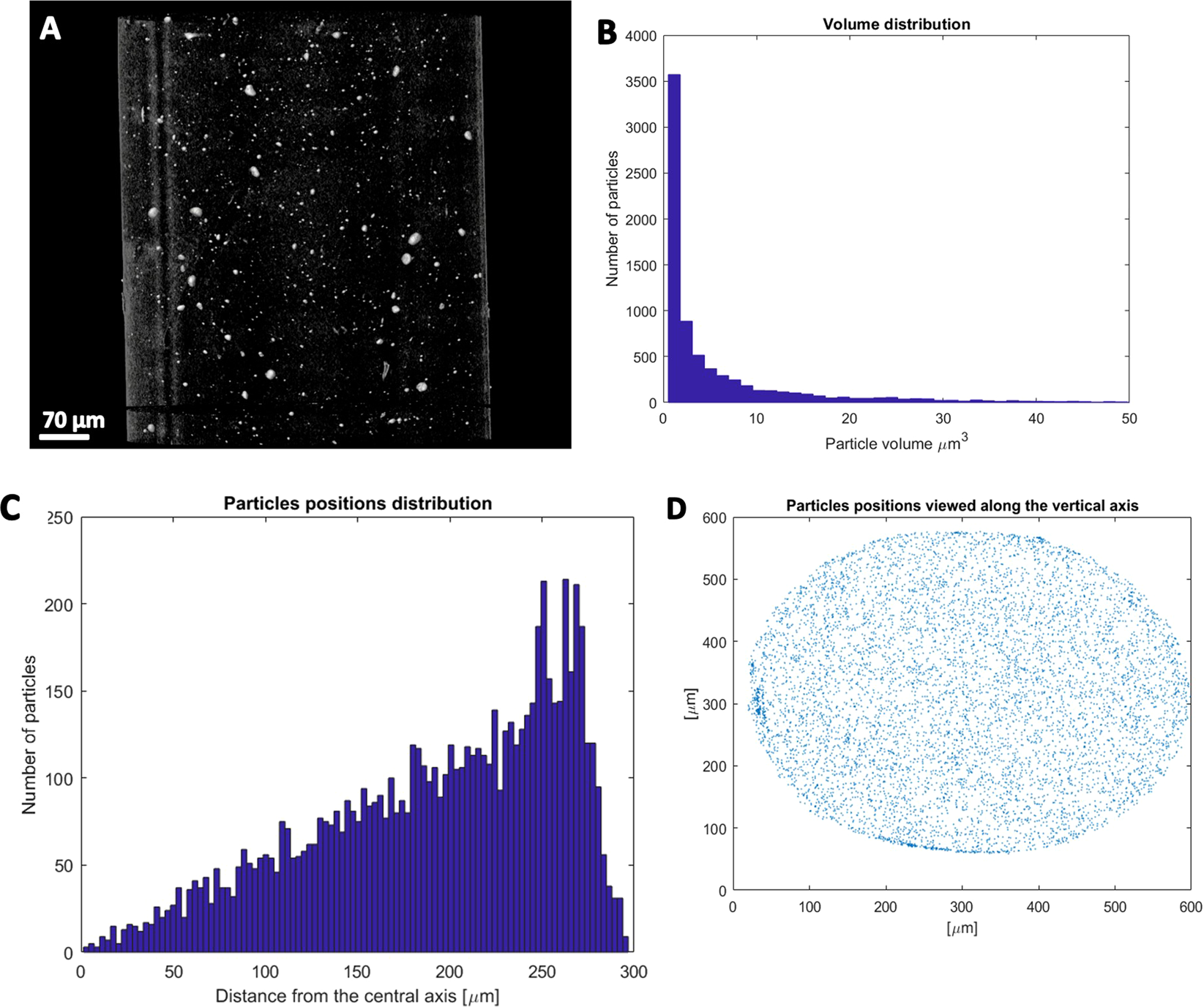

µ-XCT of post-printed filament. (A) 3D rendering image of PLA filament with 0.5 wt % INT–WS2, (B) volume distribution of the nanotubes in the PLA matrix, (C) particles positions distribution, (D) particles positions distribution along the vertical axis. Note that post-print particles are much more evenly distributed. Images drawn in Avizo Software version 9.7. Link to the software can be found in Supplementary Information.
