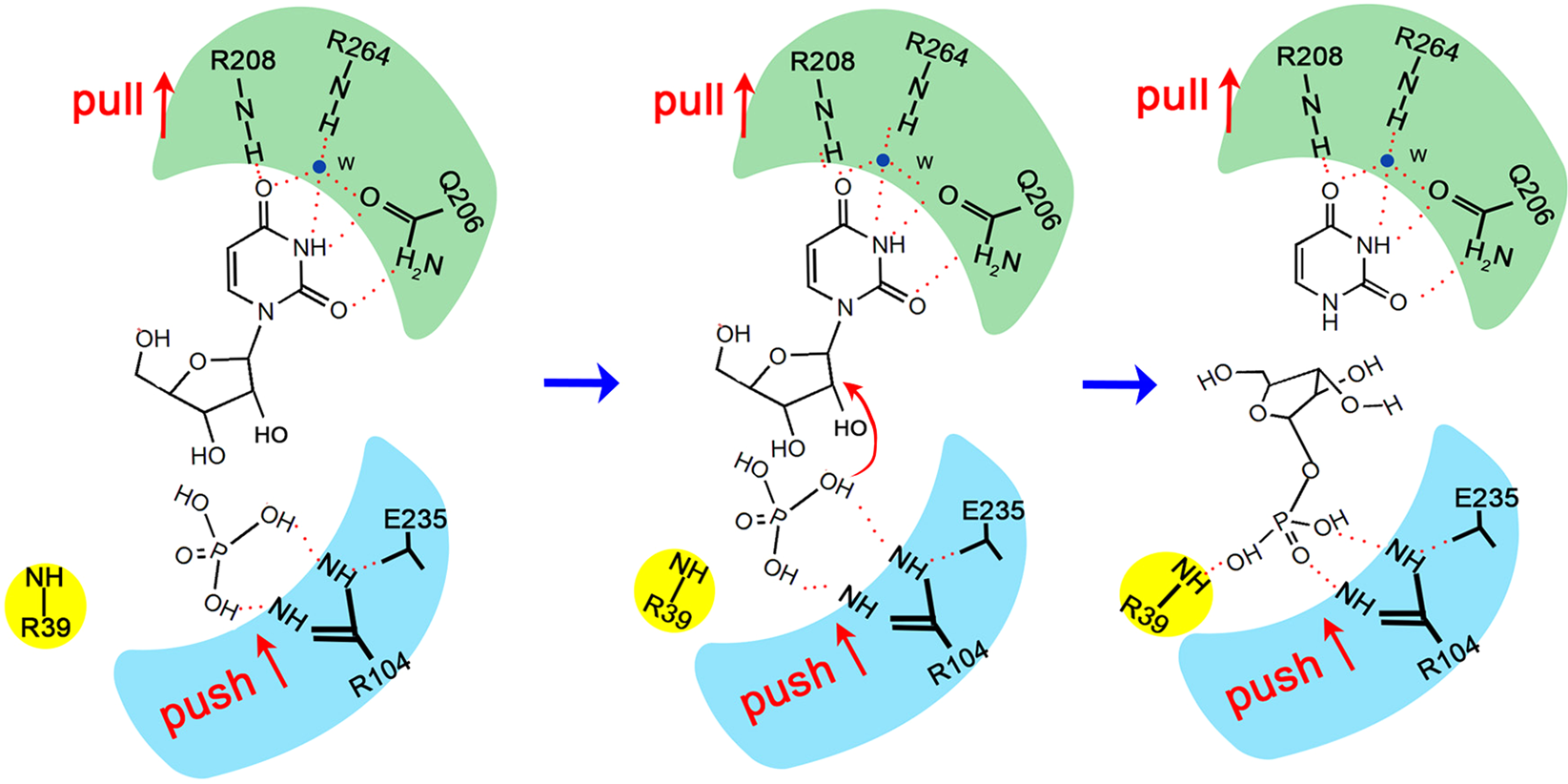

Figure 8

Proposed catalytic mechanism of PcUP1. In this model, deprotonation of phosphate by Arg104, increases the negative charge on the phosphate oxygen, leading to repulsion between the electrons of phosphate oxygen and electron pairs of the endocylic ribosyl oxygen and the formation of an intermediate oxocarbenium ion. At the same time, the Gln206, Arg208 and Arg264-N1 hydrogen network-bond pulls electrons from the glycosidic bond onto the pyrimidine ring. These two actions work in concert to weaken the glycosidic bond. Arg39 (shown in yellow) pivots, to physically push the phosphate closer to the ribose moiety. After glycosidic bond cleavage, ribose-1-phosphate dissociates from the active pocket, and then an active water reprotonates the negatively charged purine. The final step is to release the neutral purine base.
