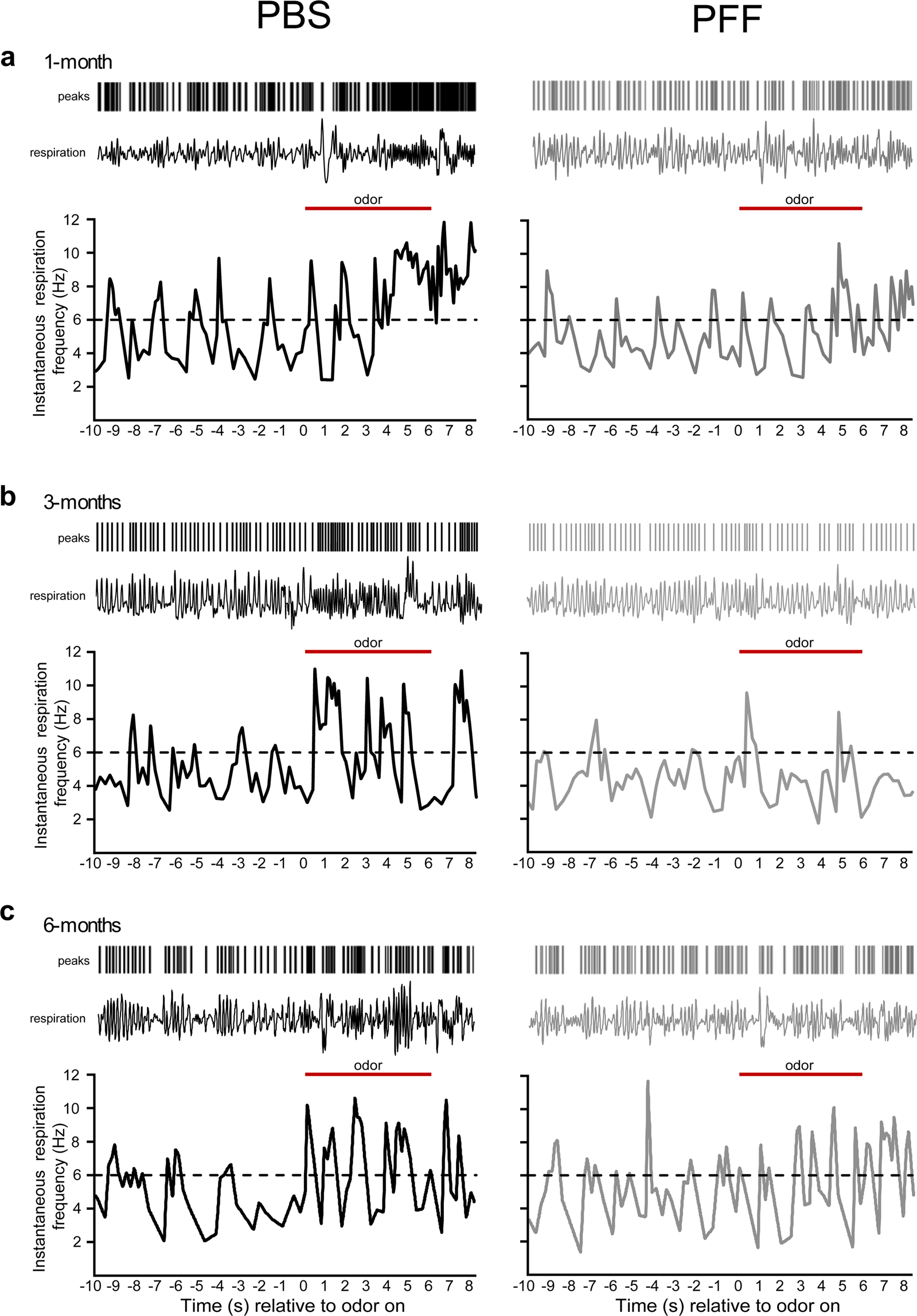

Figure 6
Sniffing behavior of mice injected with PBS or PFFs. Example respiratory behavior relative to odor presentation for female mice injected with PBS (black traces) or PFFs (gray traces) at one- (a), three- (b) and six-months post-injection (c). Rasters in each panel (top) represents inspiration peaks detected offline of digitally acquired respiration signals from the plethysmograph (1 Hz to 15 Hz Butterworth, 2nd order). Plotted in the lower aspect of each panel is the instantaneous respiration frequency which was calculated off of the inspiration peaks to enable analysis of respiratory frequency dynamics relative to odor onset. Horizontal dashed line indicates the threshold operationally defined as ‘investigation behavior’ (6 Hz). Odor presentation (6 s) is indicated by the solid horizontal red bar. Examples traces are taken across odors from 1×10−3 or −4 dilutions (1-month = heptanal, 3-months = 1,7-octadiene and 6-months = isoamyl acetate).
