From: Self-healing capacity of fiber-reinforced calcium phosphate cements

Figure 1

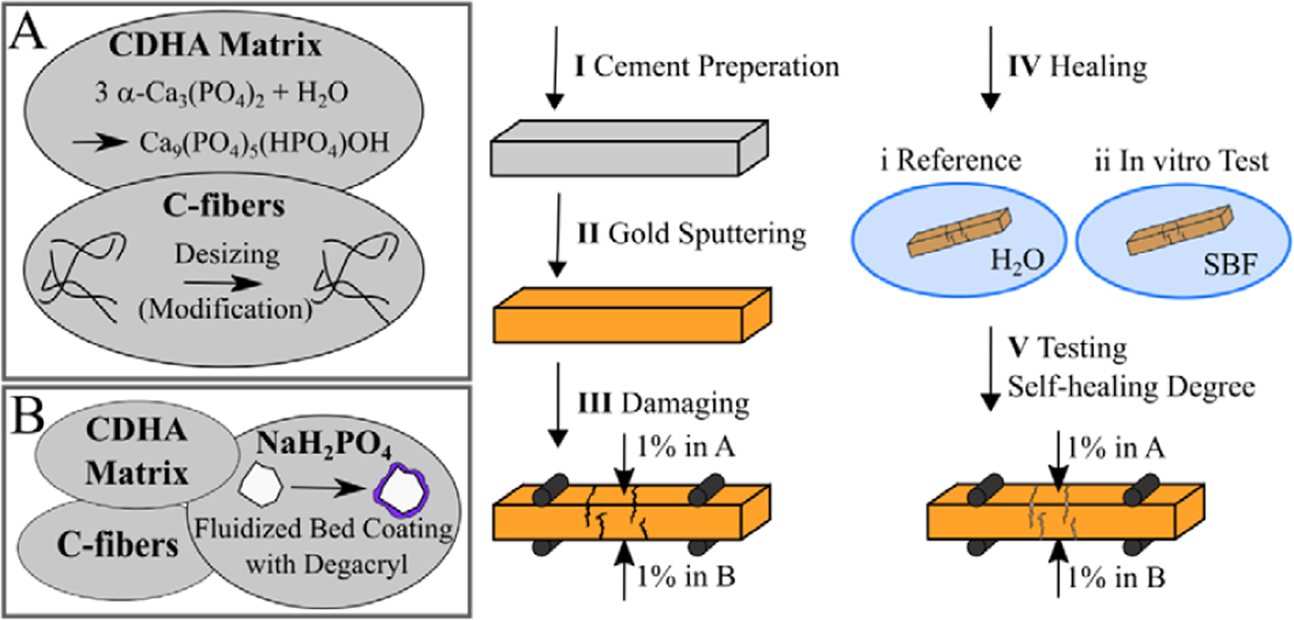

Sample preparation and regime of self-healing tests. The left part illustrates the two examined cement systems, (A) calcium deficient hydroxyapatite (CDHA) matrix and C-fibers as well as (B) CDHA matrix, C-fibers and NaH2PO4 supply, whereas on the right the procedure for self-healing tests with the steps I to V is schematically visualized.
