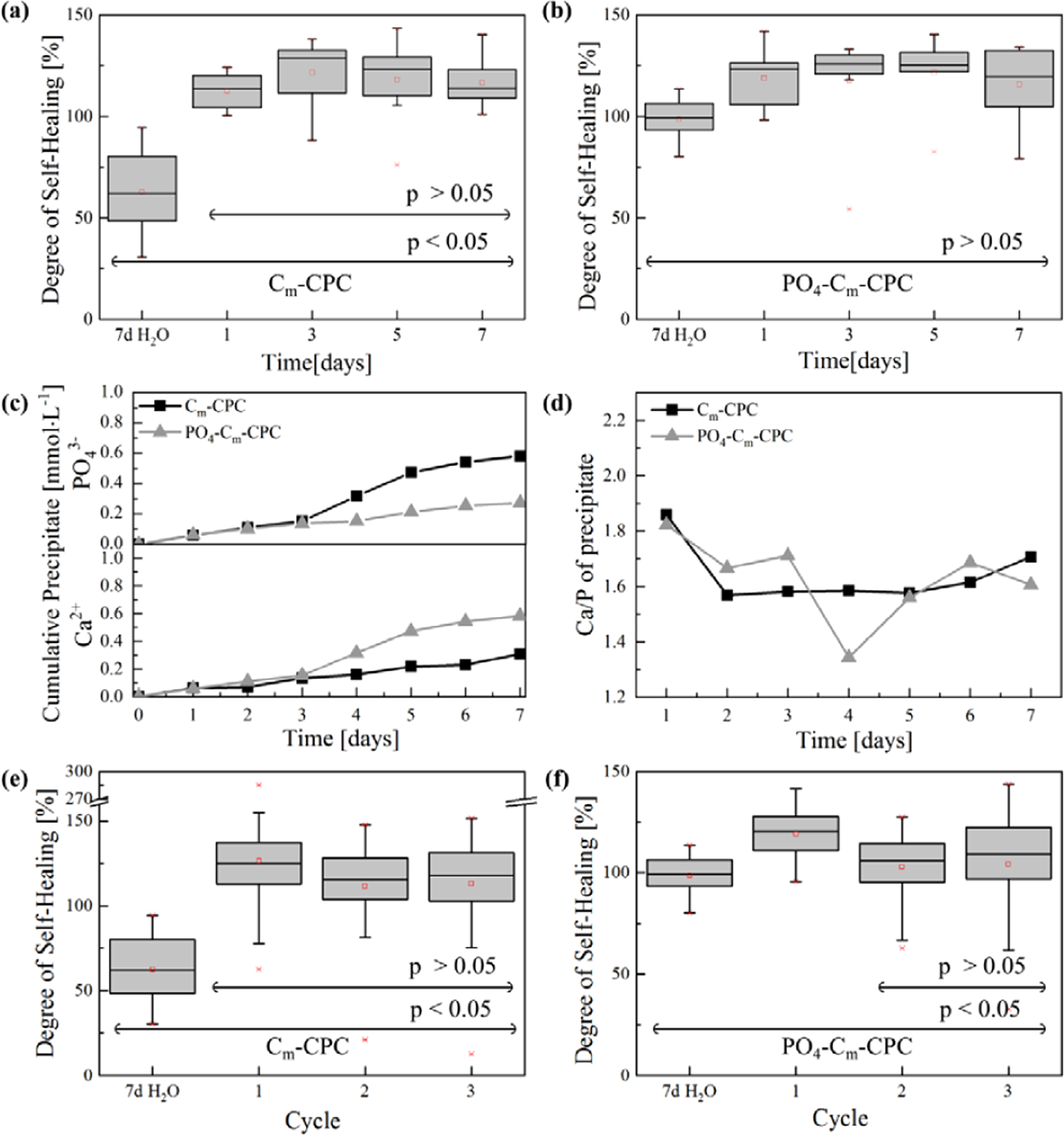

Figure 8
From: Self-healing capacity of fiber-reinforced calcium phosphate cements
Kinetic study of Cm-CPC and PO4-Cm-CPC (a,b) with respect to SHD as a function of healing time and ICP-OES analyses of the SBF composition during healing showing (c) the cumulative precipitation of Ca2+ and PO43- and (d) the calcium-phosphor ratio. The measurement error for cumulative precipitate is about 1%. Repeatability of self-healing for Cm-CPC and PO4-Cm-CPC (e,f) shows SHD for different cycles of self-healing. The self-healing was tested in SBF. Results from ANOVA are indicated with p </> 0.05.
