From: Assessment of cerebral autoregulation indices – a modelling perspective

Figure 2

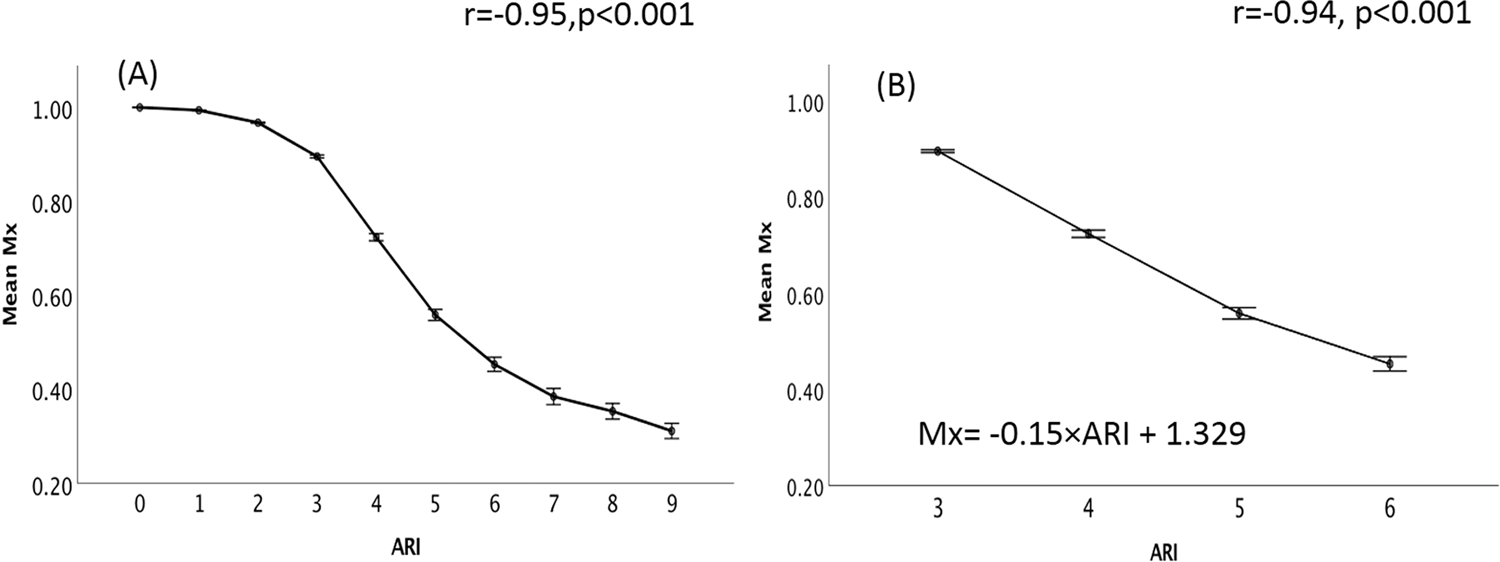

The relationship between mean Mx and ARI under no-noise condition. (A) Mean value of Mx for different groups of artificial flow velocities generated from ARI0 to ARI9. (B) Mean value of Mx from ARI3 to ARI6, we can see a linear relationship between these two parameters. Mx: mean flow index using arterial blood pressure as input; ARI: autoregulation index. Error bar: standard error.
