Figure 2
From: Graphene oxide integrated silicon photonics for detection of vapour phase volatile organic compounds

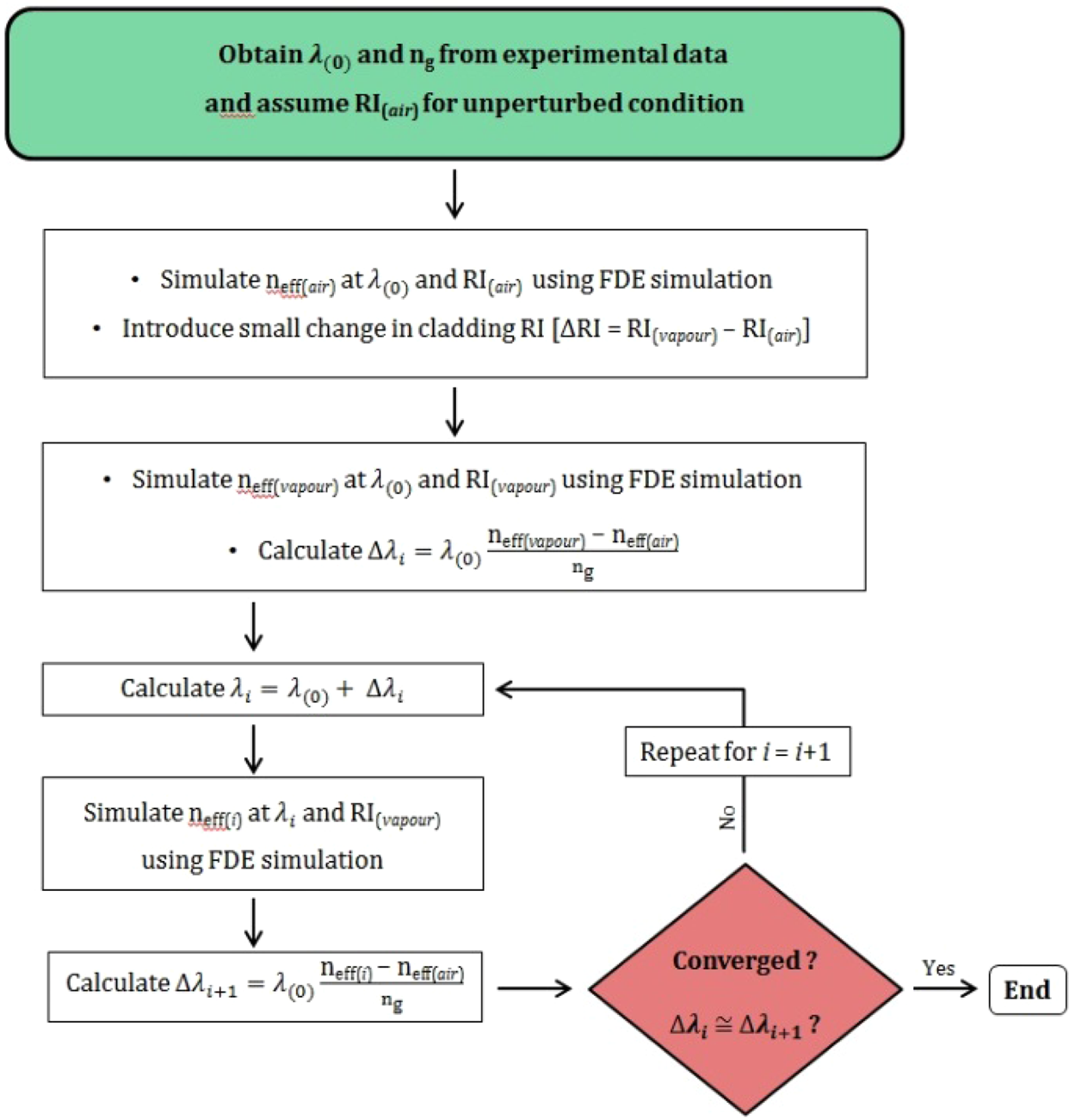

Flow chart of the iterative FDE simulation process for determination of the MRR device sensitivity.
Figure 2 | Scientific Reports
From: Graphene oxide integrated silicon photonics for detection of vapour phase volatile organic compounds
Flow chart of the iterative FDE simulation process for determination of the MRR device sensitivity.
