Figure 7
From: Graphene oxide integrated silicon photonics for detection of vapour phase volatile organic compounds

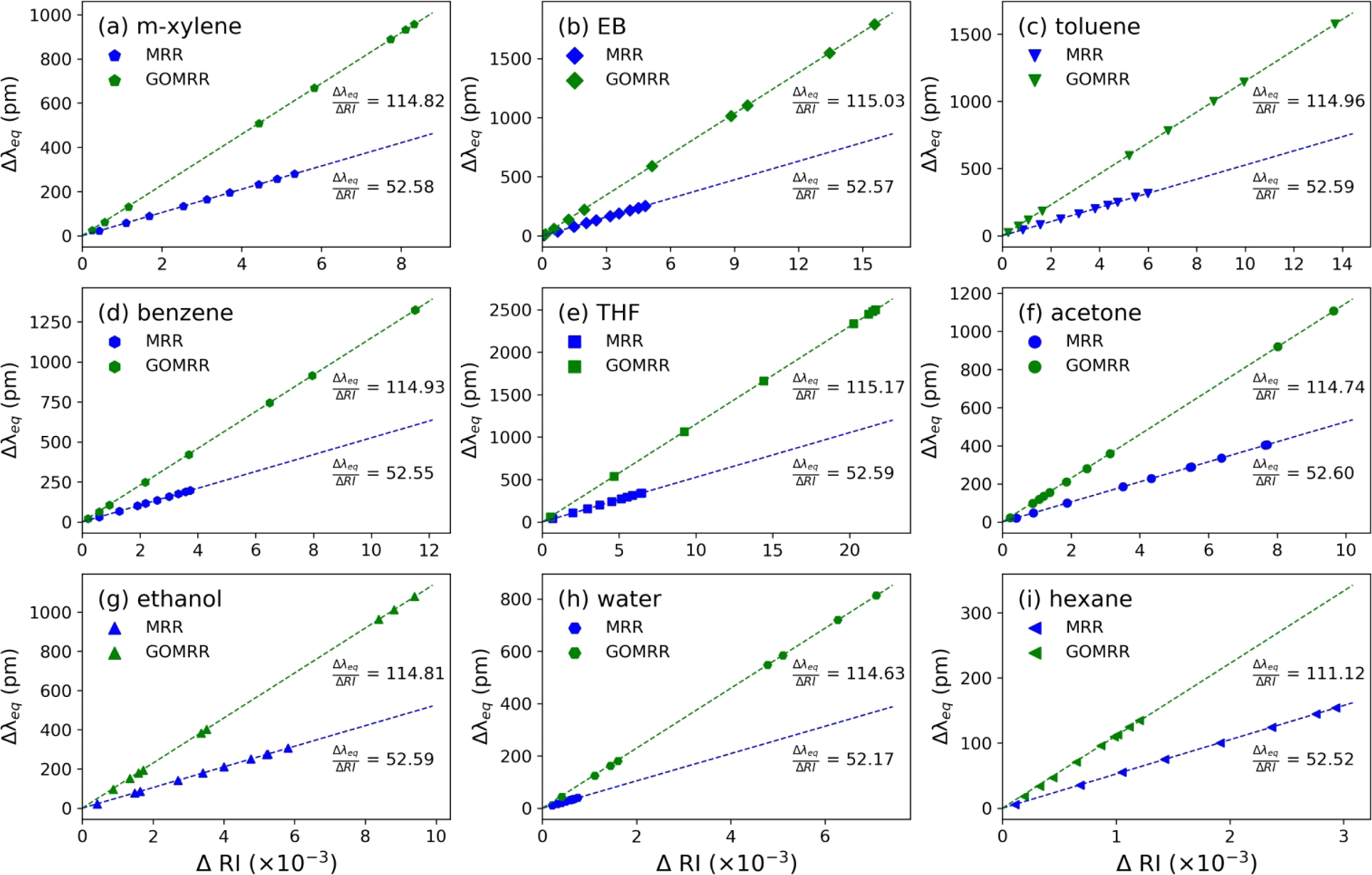

Equilibrium resonance shift (Δλeq) as a function of change in refractive index for various VOC vapours for MRR (blue) and GOMRR (green).
