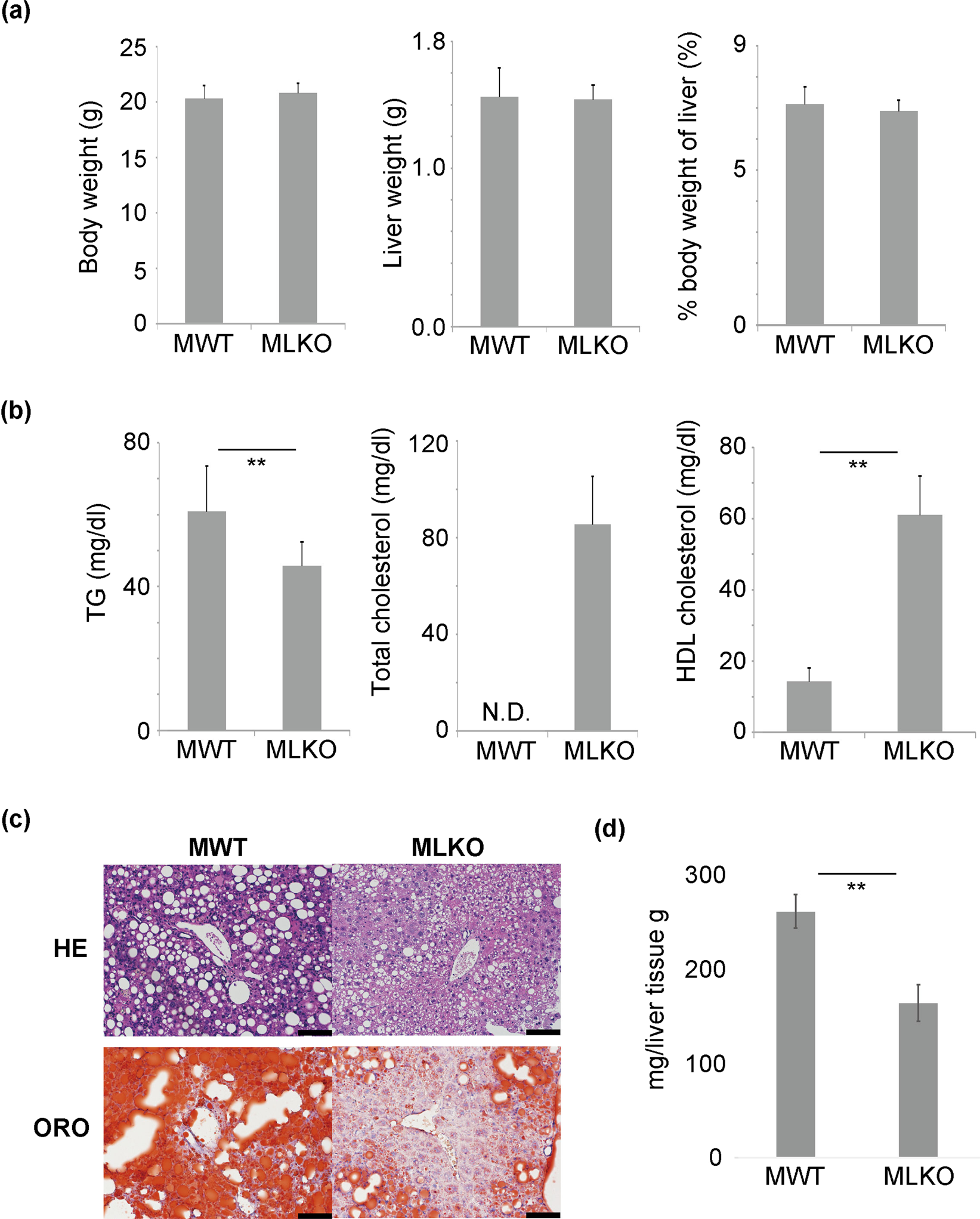

Figure 4
Analysis of characteristics of Bcl6-LKO mice fed with choline-deficient L-amino acid-define, high-fat diet (CDAHFD) for 7 weeks. (a) Body weight and liver weight were measured. The percent weight of liver relative to the body weight (% body weight of liver) was calculated. Results are represented as mean ± standard deviation (S.D.) (n = 9 for male wild-type mice, n = 10 for male Bcl6-LKO mice). (b) The serum levels of triglyceride (TG), total cholesterol, and high-density lipoprotein (HDL) cholesterol were measured. Results are represented as mean ± S.D. (n = 9 for male wild-type mice, n = 10 for male Bcl6-LKO mice). The levels of total serum cholesterol in all MWT samples were below the detection limits (50 mg/dL). Thus, the datapoint is shown as N.D. (Not detected). (c) Analyses of lipid accumulation in livers. The livers of WT and Bcl6-LKO mice fed with CDAHFD for 7 weeks were subjected to haematoxylin and eosin (HE) staining and oil red O (ORO) staining. Representative images are shown. Scale bar shows 100 μm. (d) The triglyceride levels in the livers of WT and Bcl6-LKO mice fed with CDAHFD were quantified. Results are represented as mean ± S.D. (n = 4). **P < 0.01 MWT, male wild-type mouse samples; MLKO; male Bcl6-LKO mouse samples.
