Figure 7
From: Drop-on-demand cell bioprinting via Laser Induced Side Transfer (LIST)

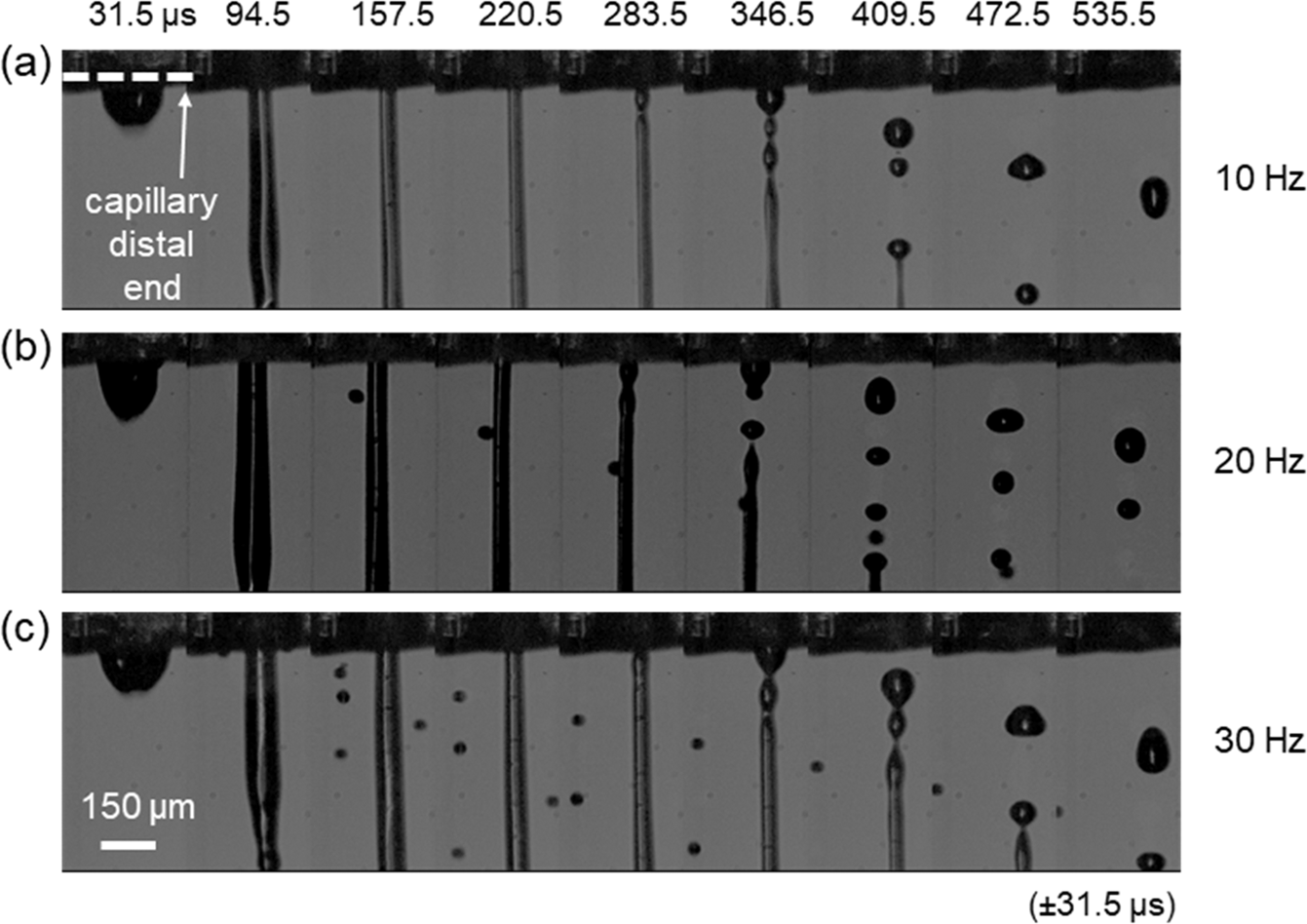

Sequences of snapshots showing micro-jet evolution for (a)10 Hz (b) 20 Hz and (c) 30 Hz. The laser energy was kept constant at 100 µJ. The laser pulse was focused at the middle point of the capillary and 500 μm above its distal end.
