Figure 2
From: Differential color tuning of the mesolimbic reward system

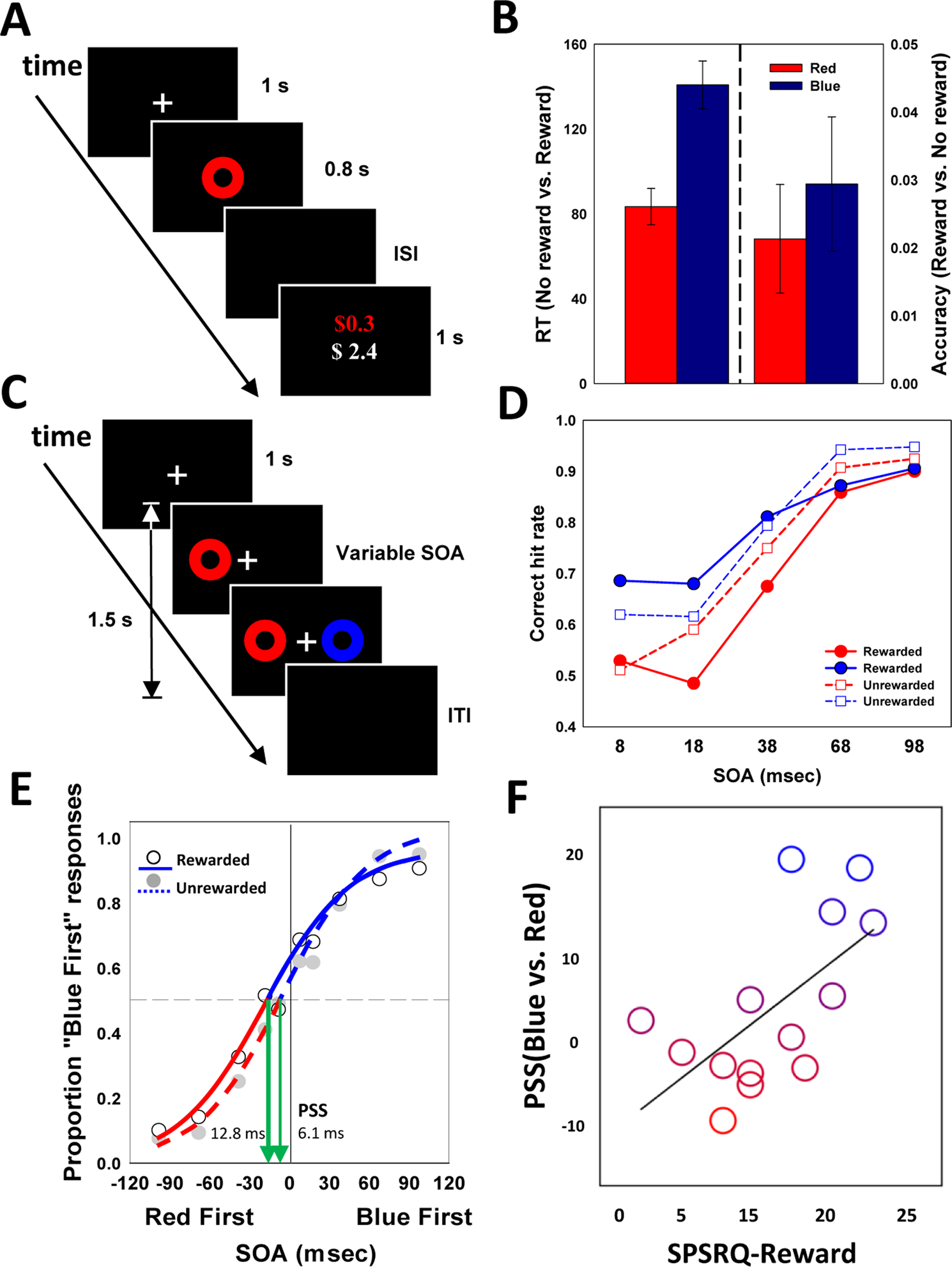

Color, reward, and attentional salience. (A) Reinforcement color discrimination task; (B) Response time and accuracy for reinforcement task (rewarded vs unrewarded). For the left panel, RT index = RT(No reward) - RT(Reward) (Left Y-axis), while for the right panel, Accuracy index = Accuracy(Reward) – Accuracy (No Reward) (Right Y-axis); (C) Temporal Order Judgment task; (D) Average hit rate proportions for each pair (blue versus red presented first, denoted by color) across SOAs; (E) Average proportions of “blue first” responses as a function of SOA, green arrows represent estimated point of subjective simultaneity (PSS); (F): Correlation between reward sensitivity and PSS.
