Figure 3
From: On the Molecular Level Cavitation in Soft Gelatin Hydrogel

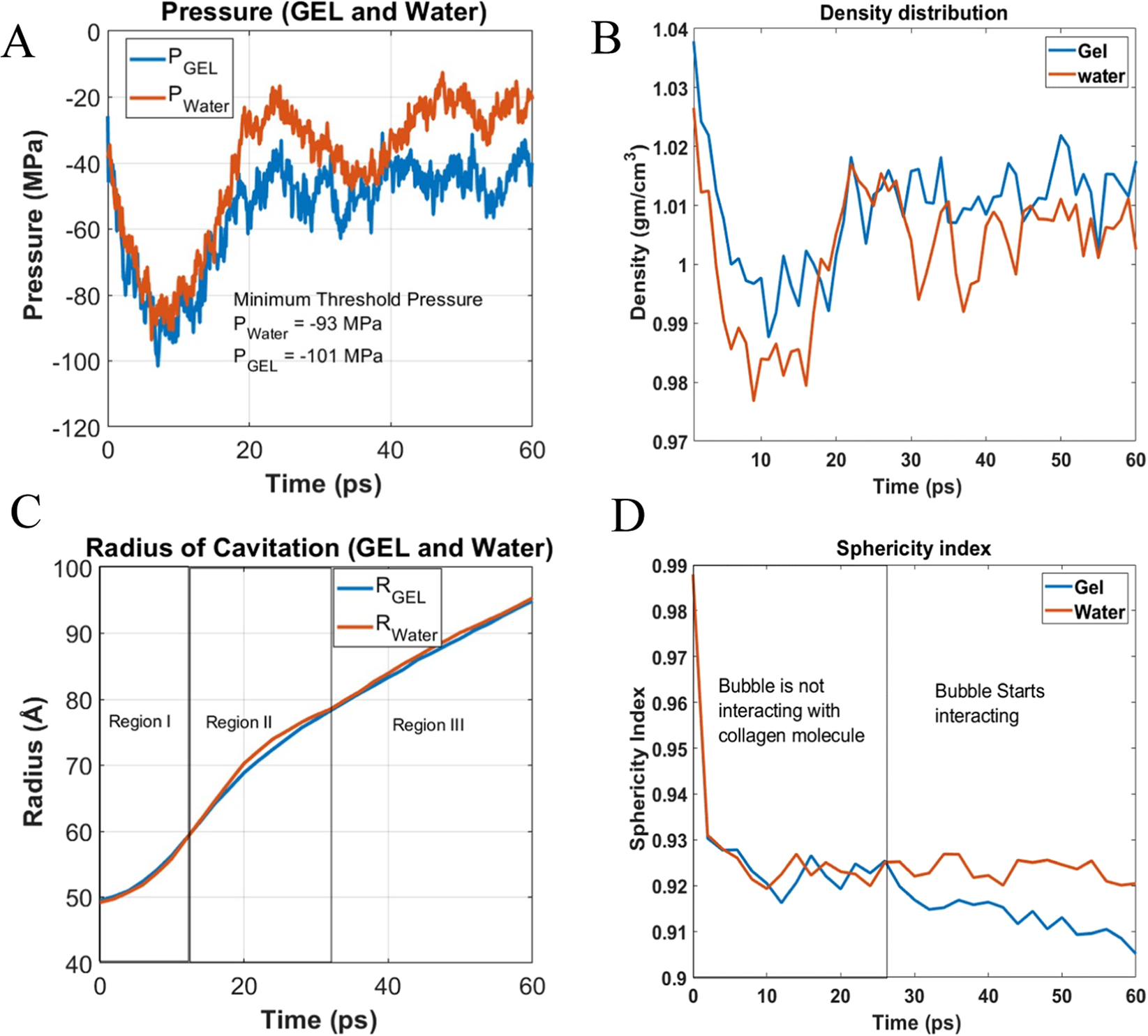

Bubble growth phenomena in water and gel like structure (A) Pressure fluctuation during cavitation growth. (B) Density variation (Exclude cavity volume during density calculation). (C) Cavitation radius (D) Cavitation sphericity index.
