From: Klenkia terrae resistant to DNA extraction in germ-free mice stools illustrates the extraction pitfall faced by metagenomics

Fig. 3

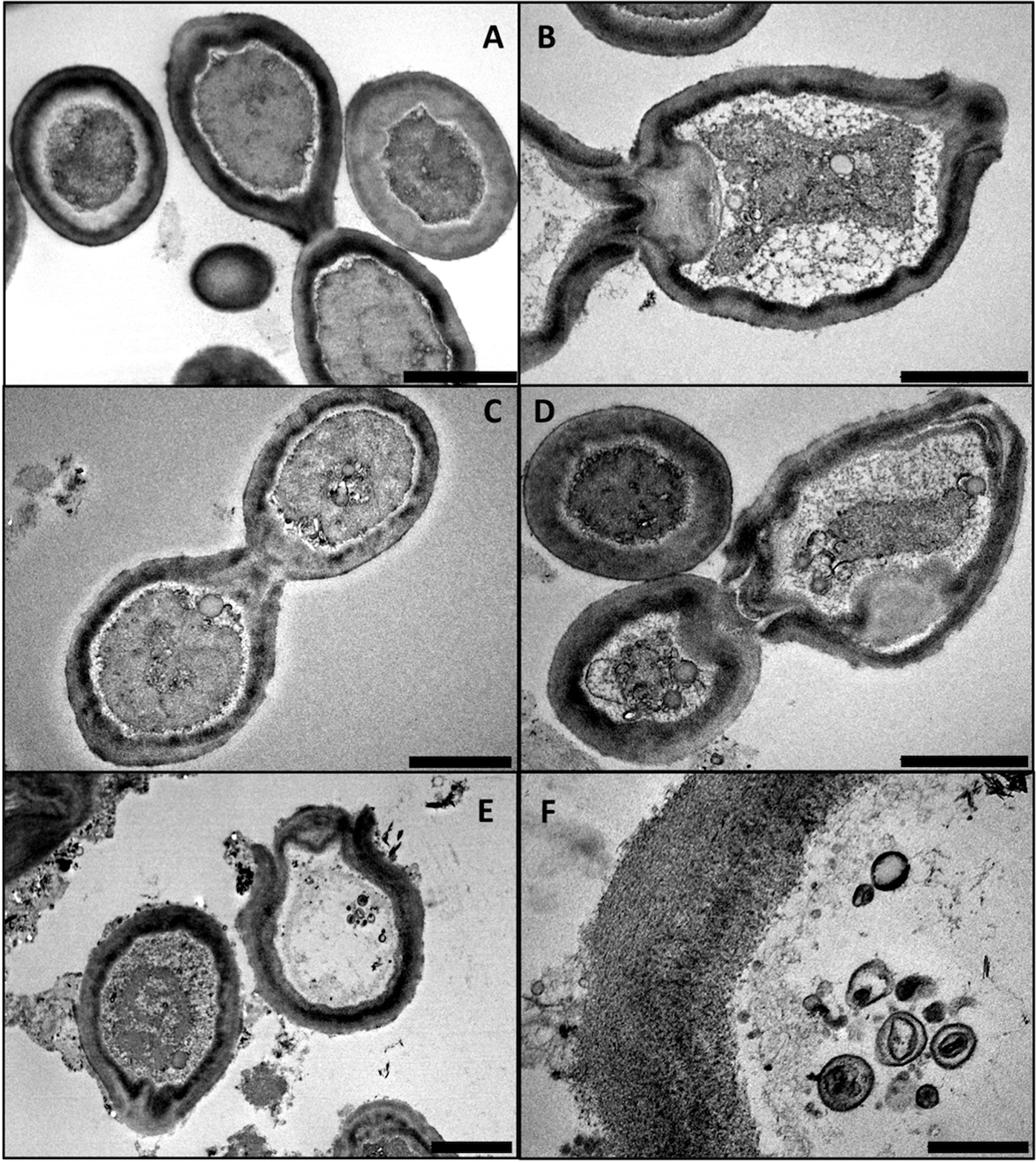

Micrographs obtained by Transmission electron microscopy in the stool embedding 26.3 and 17.9. Scale bars represent 2μm except for the panel (F) scale bar indicates 500 nm. (A–D) were observed for the 17.9 stool sample. (E) and (F) were observed for the 26.3 sample, and (F) was a higher magnification of (E). All images were captured on Morgagni device.
