Figure 5 | Scientific Reports

Figure 5

From: Malodorous biogenic amines in Escherichia coli-caused urinary tract infections in women—a metabolomics approach

Figure 5

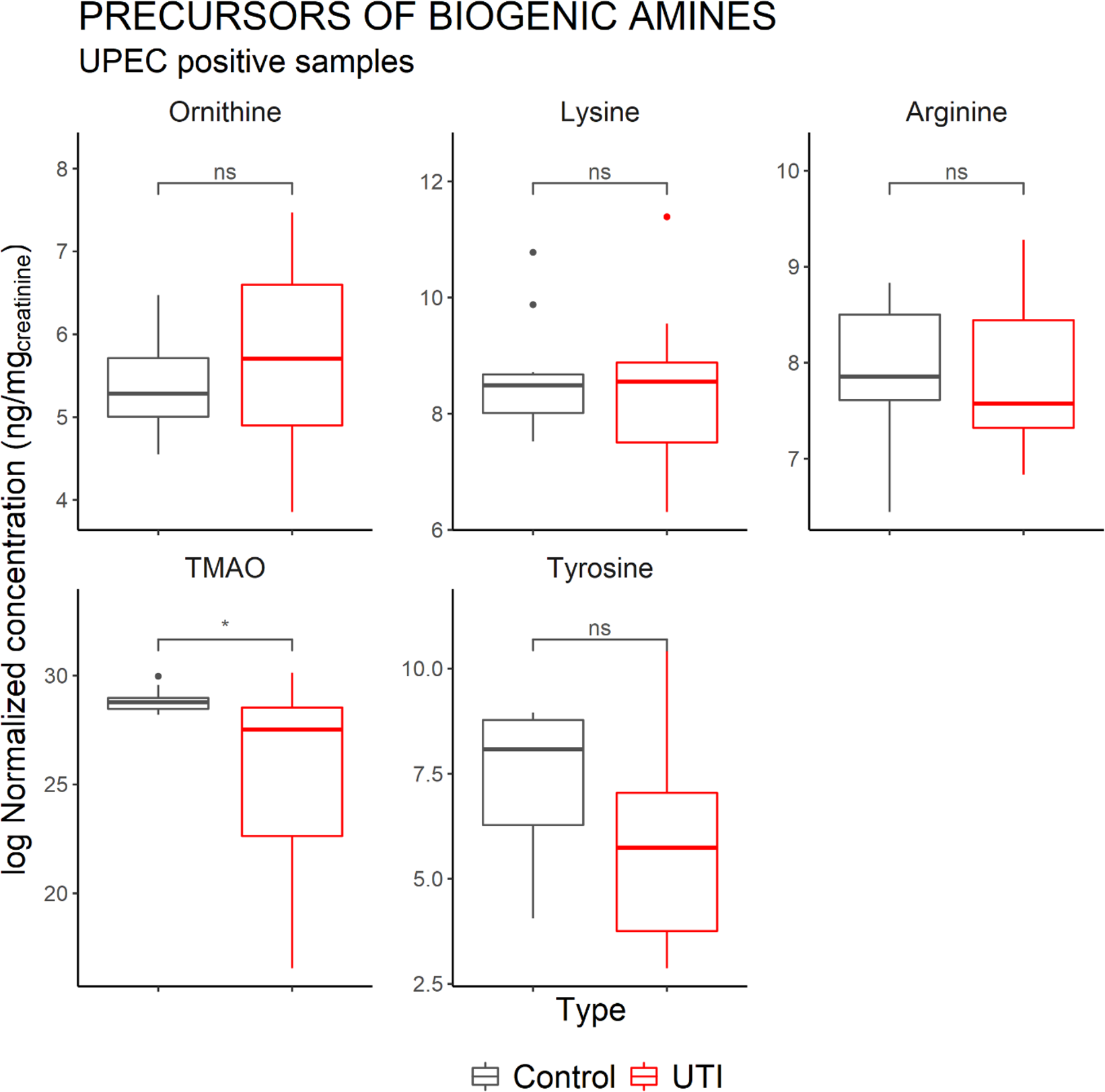

Comparison of the concentration of the precursors of biogenic amines in Healthy vs UTI positive patients. Control consists of the urine of healthy patients (n = 10). TMAO, one of the precursors of TMA, was significantly lower in the positive samples. Only the samples positive for UPEC were included in this analysis (n = 15). Horizontal lines indicate the median. Significant differences were determined on log-transformed values using a two-sample t-test (*p < 0.05).
