Figure 7

From: Identification and characterization of Colletotrichum species causing apple bitter rot in New York and description of C. noveboracense sp. nov.

Figure 7

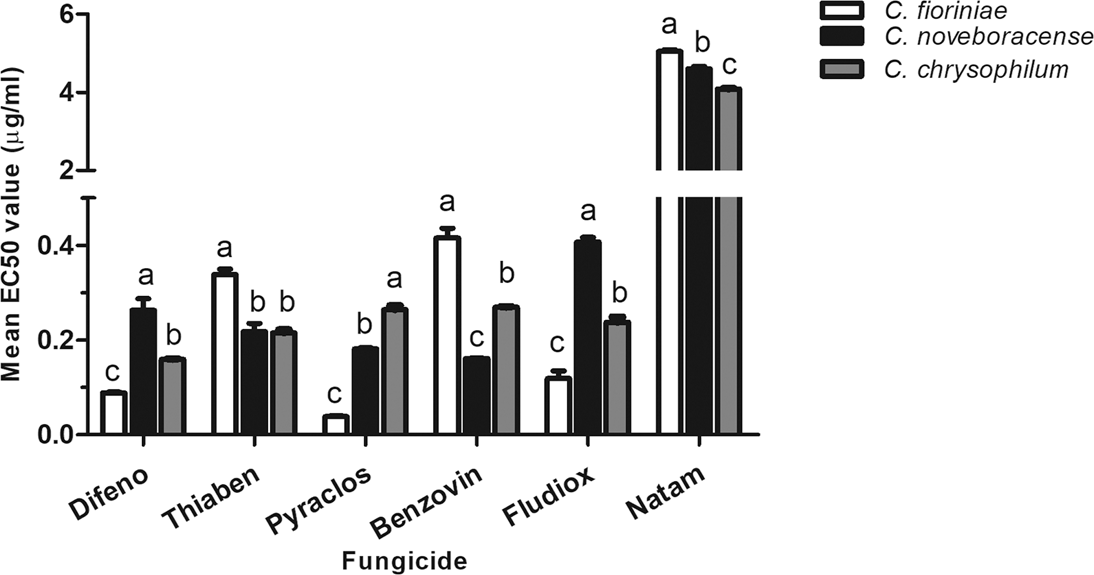

Mean EC50 values (µg/ml) of Colletotrichum fioriniae (isolates ACFK165, ACFK10, ACFK11, ACFK12, ACFK14, ACFK145, ACFK15, ACFK16, ACFK25, ACFK29, ACFK299, ACFK4, ACFK5, ACFK8, ACFK9, ACFKCM-9, ACFK205, ACFK3 and ACFK6); Colletotrichum chrysophilum (isolates AFK17, AFK28, AFK154, AFK18, AFK22, AFK26, AFK30 and AFK31) and Colletotrichum noveboracense (isolates AFK220, AFK289, AFK408, AFK423, AFK65 and AFKH109) for fungicides difenoconazole (Difeno), thiabendazole (Tiaben), pyraclostrobin (Pyraclos), benzovindiflupyr (Benzovin), fludioxonil (Fludiox) and Natamycin (Natam). Colletotrichum species followed by the same letter were not significantly different based on Bonferroni Comparison Posttest (p ≤ 0.05). Error bars represent standard deviation.
