Figure 2

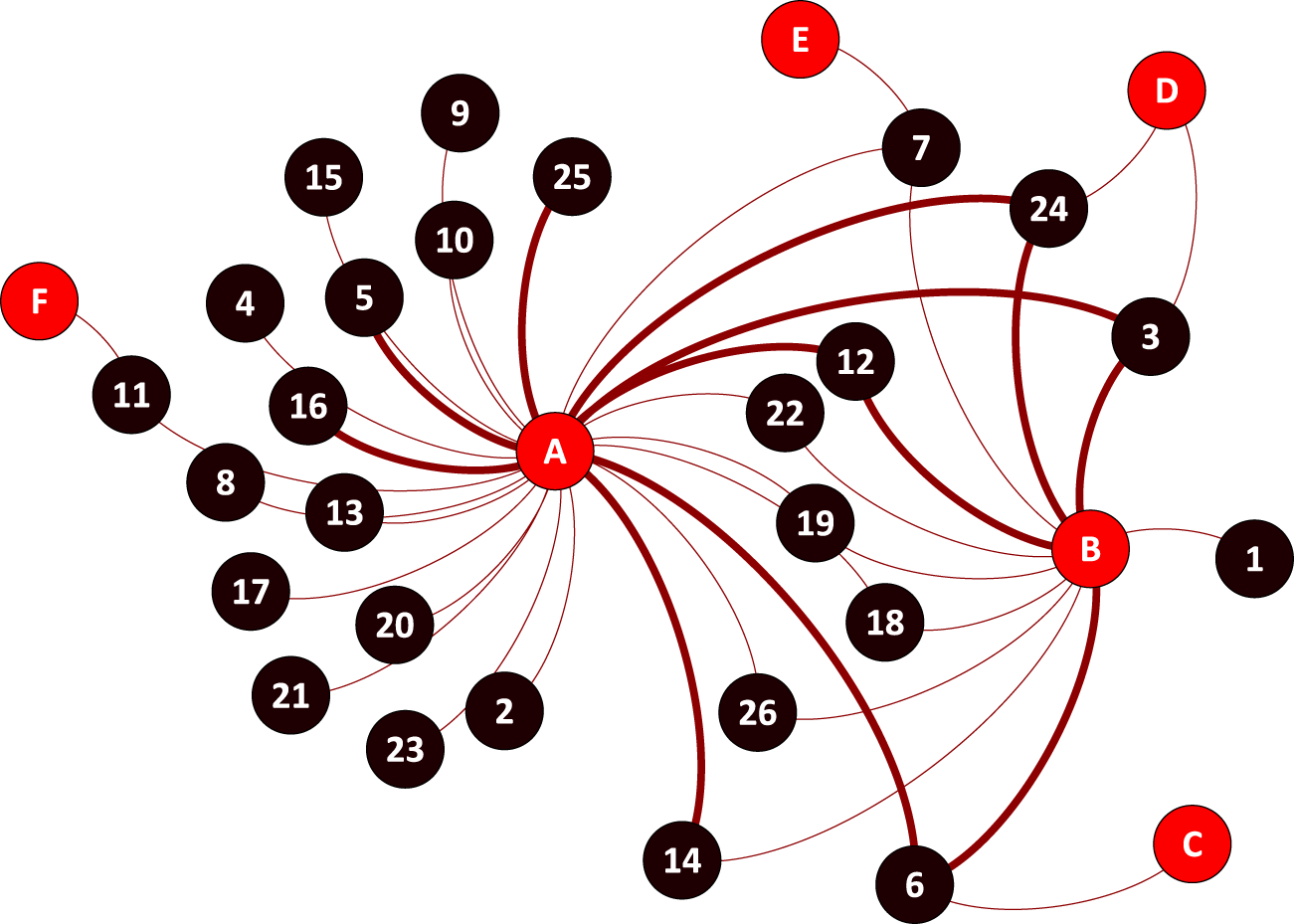

The network of ticks, passerines, and Cand. Borrelia mahuryensis. Each red node (with letters) and each black node (with numbers) designate a tick and passerine species, respectively. Solid edges indicate pairs of tick/passerine species for which Cand. Borrelia mahuryensis was detected (see Table S1 for details). (A) Amblyomma longirostre; (B) A. geayi; (C) A. varium; (D) A. cajennense; (E) A. calcaratum; (F) A. humerale; 1, Attila spadiceus; 2, Campylopterus largipennis; 3, Chiroxiphia pareola; 4, Cyanocompsa cyanoides; 5, Dendroplex picus; 6, Glyphorynchus spirurus; 7, Manacus manacus; 8, Mionectes macconnelli; 9, M. oleaginous; 10, Myrmeciza ferruginea; 11, Myrmotherula axillaris; 12, Percnostola rufifrons; 13, Picumnus exilis; 14, Pipra aureola; 15, P. erythrocephala; 16, Ramphocelus carbo; 17, Saltator maximus; 18, Thamnomanes caesius; 19, Thamnophilus doliatus; 20, T. punctatus; 21, Tolmomyias sulphurescens; 22, Turdus albicollis; 23, T. fumigatus; 24, T. leucomelas; 25, Xenops minutus; 26, Xiphorhynchus pardalotus.
