From: Characterisation of CaCO3 phases during strain-specific ureolytic precipitation

Figure 1

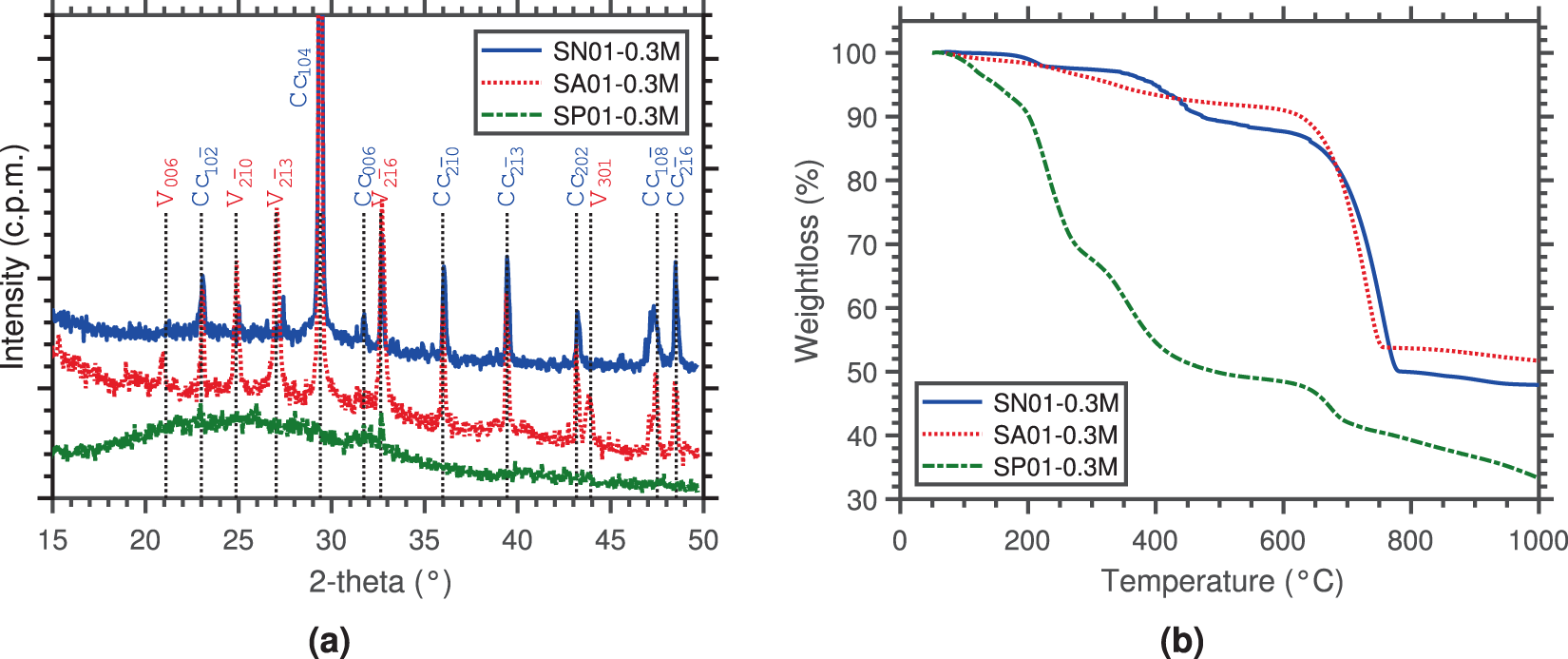

XRD pattern with hkl values of Bragg peaks indicated (Cu-Kα radiation, λ = 1.5406 Å) (a); and TG curves (All: heating rate 10 °C min−1; SN01-0.3M: Ar “reactive gas” flow rate 50 mL min−1, and SA01-0.3M and SP01-0.3M: N2 “reactive gas” flow rate 50 mL min−1 (b) of precipitated CaCO3. V, vaterite; Cc, calcite; Halite peaks resulting from desiccating media of S. newyorkensis not indicated.
