Figure 4
From: Explorative study of serum biomarkers of liver failure after liver resection

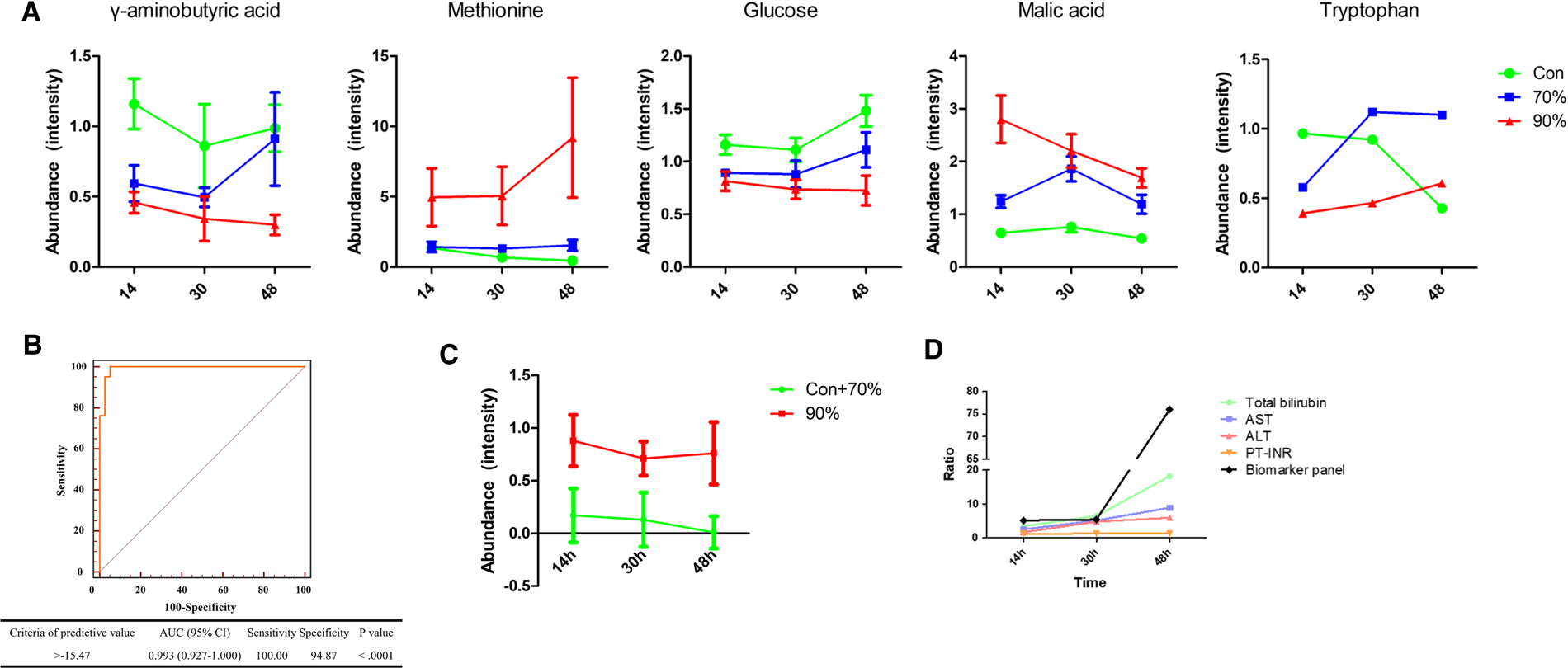

Performance evaluation of the biomarker panel (A) Line plots and statistical significance of the metabolites at each time point. Error bar indicates error of mean. (B) Receiver operating characteristic (ROC) curve analysis of serum metabolic biomarkers. The binary logistic regression model with malic acid, methionine, tryptophan, glucose, and γ-aminobutyric acid predicts the risk of hepatectomy lethality (90% hepatectomy from sham and 70% hepatectomy). (C) Line plots and statistical significance of the linearly transformed biomarkers. Error bar indicates error of mean. (D)The comparison of time profiles of the biomarker model and clinical markers. Y-axis is the ratio in which the values of 90% hepatectomy groups were divided by control groups (sham and 70% hepatectomy group).
