Figure 1
From: Distal lung epithelial progenitor cell function declines with age

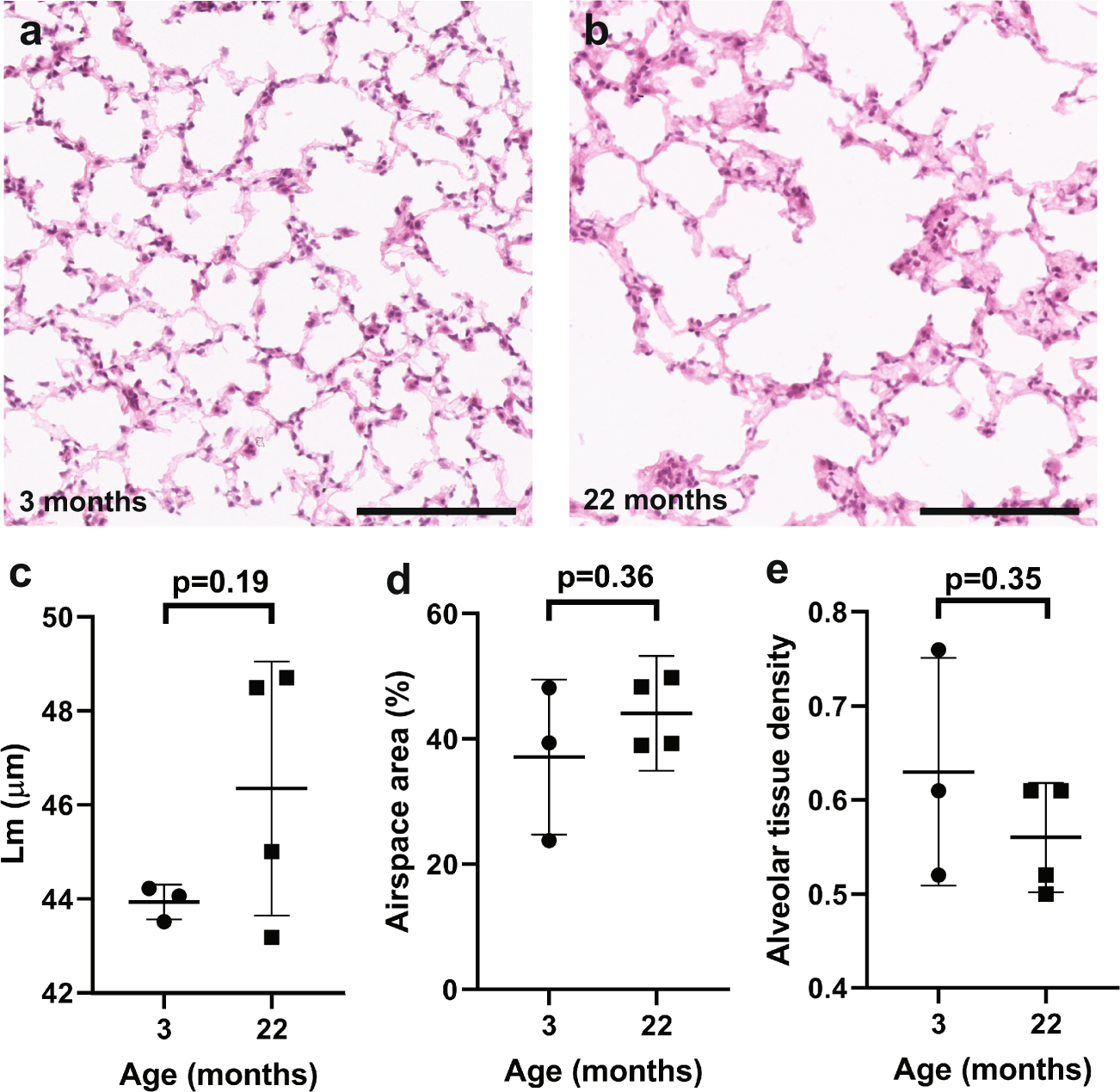

Lung parenchymal density at different ages. Representative 40x images of H&E stained lung parenchyma from (a) 3 month old and (b) 22 month old mice. Scale bars are 150 µm. Dotplots depicting (c) mean linear intercept (Lm), (d) airspace area (>2 images analysed per mouse) and (e) alveolar tissue density (>2 images analysed per mouse). Circles represent 3 month old mice, and squares represent 22 month old mice. Error bars are standard deviations. P-values refer to two-tailed T-test results.
