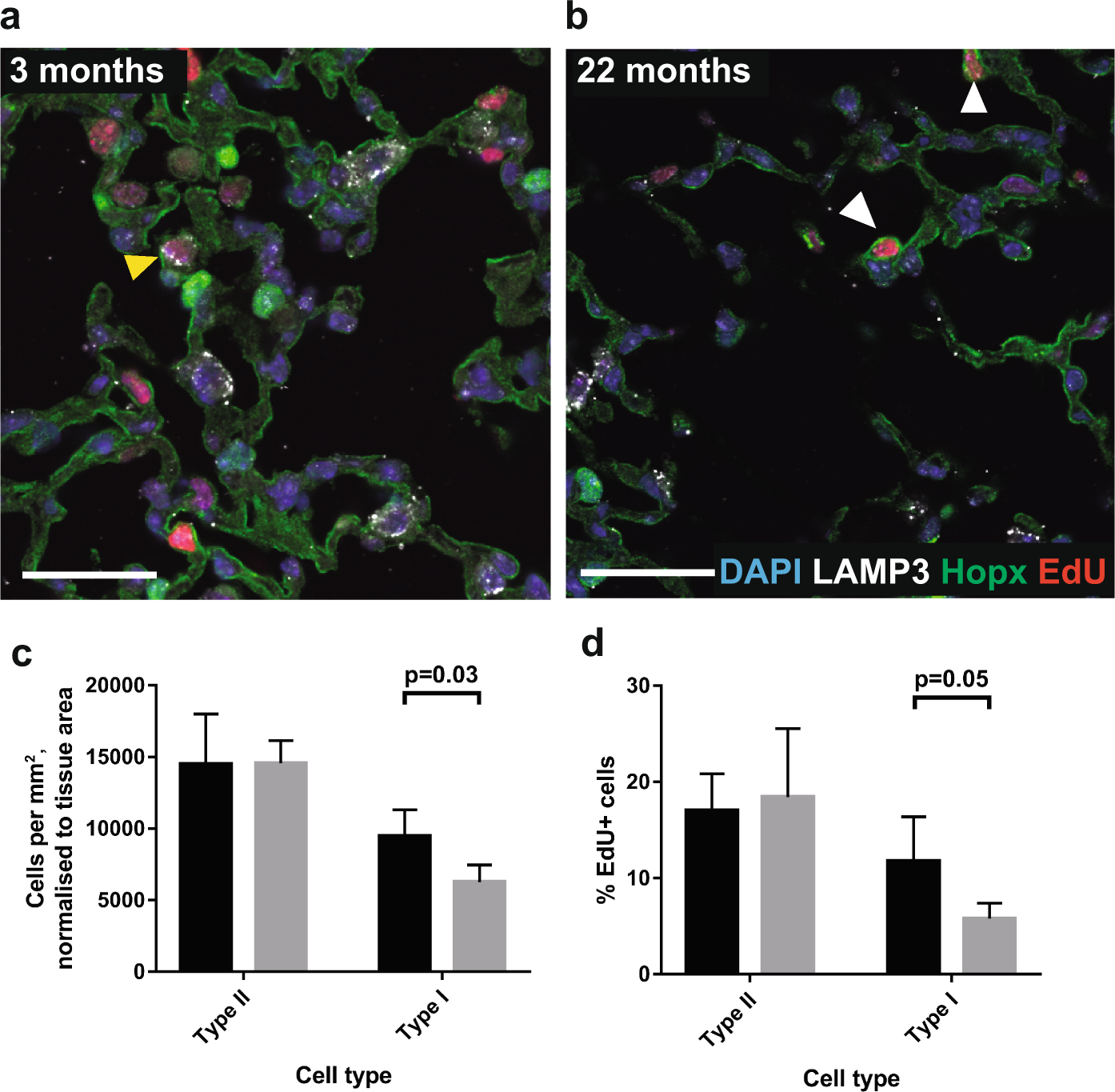

Figure 3

Alveolar Type II progenitor density and proliferation is maintained with age, but emergence of EdU+ Type I cells is decreased. 40x images of lung alveoli from (a) 3 month old and (b) 22 month old mice treated with EdU ad libitum in drinking water for 14 days, stained for DAPI (blue), LAMP3 (white, Type II cells), Hopx (green, Type I cells), EdU (red, cells that have proliferated). Scale bars are 30 µm. Yellow arrowhead indicates EdU+ Type II cell, white arrowheads indicate EdU+ Type I cells. (c) Histogram depicting density of Type II and Type I cells per mm² of alveolar tissue area. Note that data has been normalised to the alveolar tissue density values shown in 1c, to eliminate effects of decreased density with age. (d) Histogram depicting percentage of Type II and Type I cells that have incorporated EdU, indicating that they have undergone proliferation. >950 cells were counted per mouse, and 4 mice were in each age group. Black bars represent 3 month old mice, and grey bars represent 22 month old mice. Error bars are standard deviations, and p-values refer to two-tailed T-test results.
