Figure 5
From: Comparison of differential accessibility analysis strategies for ATAC-seq data

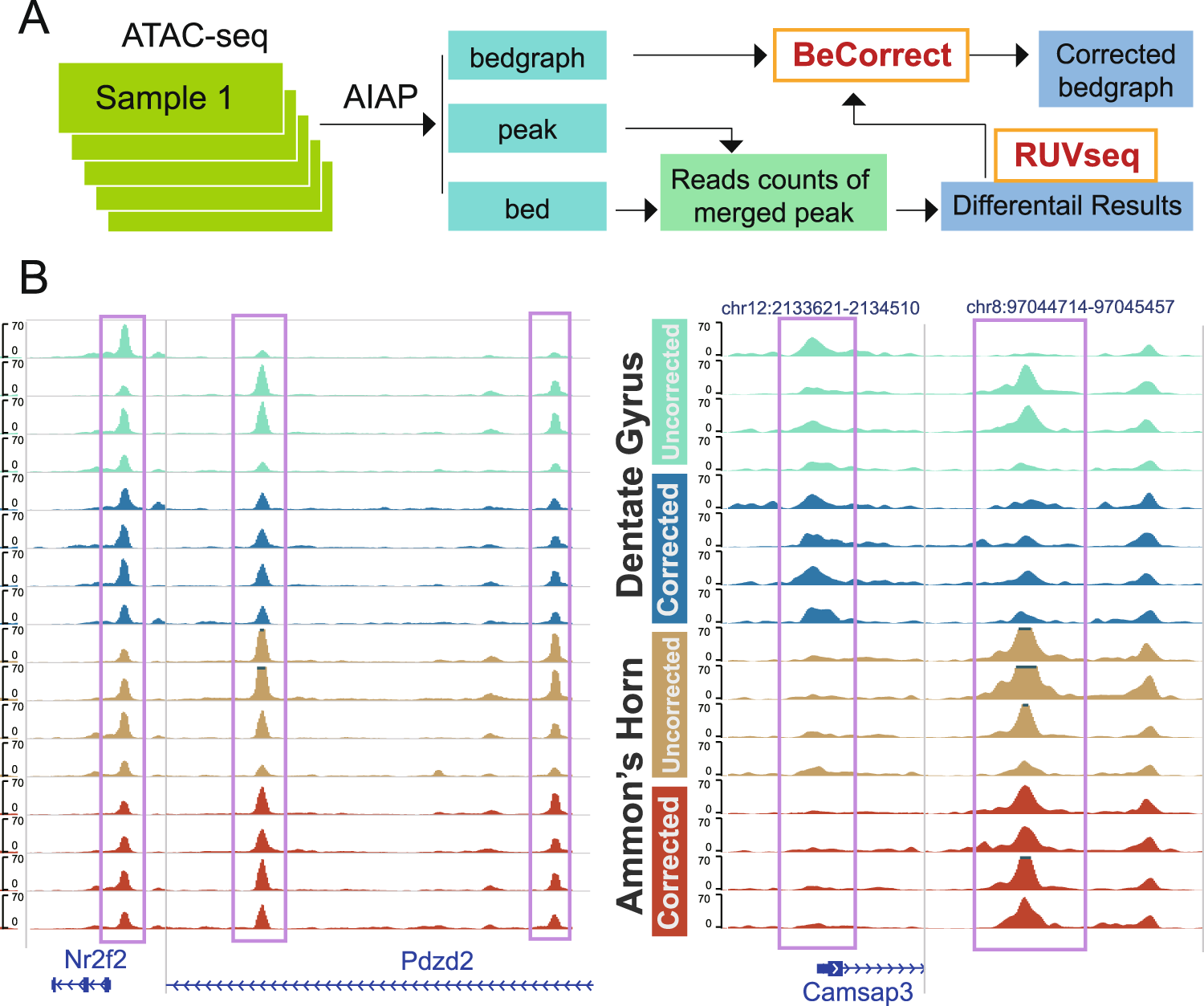

Batch-effect correction of visualized ATAC-seq signal by BeCorrect. (A) Flowchart for correcting ATAC-seq visualization by BeCorrect. (B) Genome browser view of ATAC-seq signal density before (cyan and brown) and after (blue and red) BeCorrect processing. Left: OCRs around hippocampus marker genes Nr2f2 and Pdzd2. Right: DARs on chr12 and chr8.
