Figure 4
From: hFRUIT: An optimized agent for optical clearing of DiI-stained adult human brain tissue

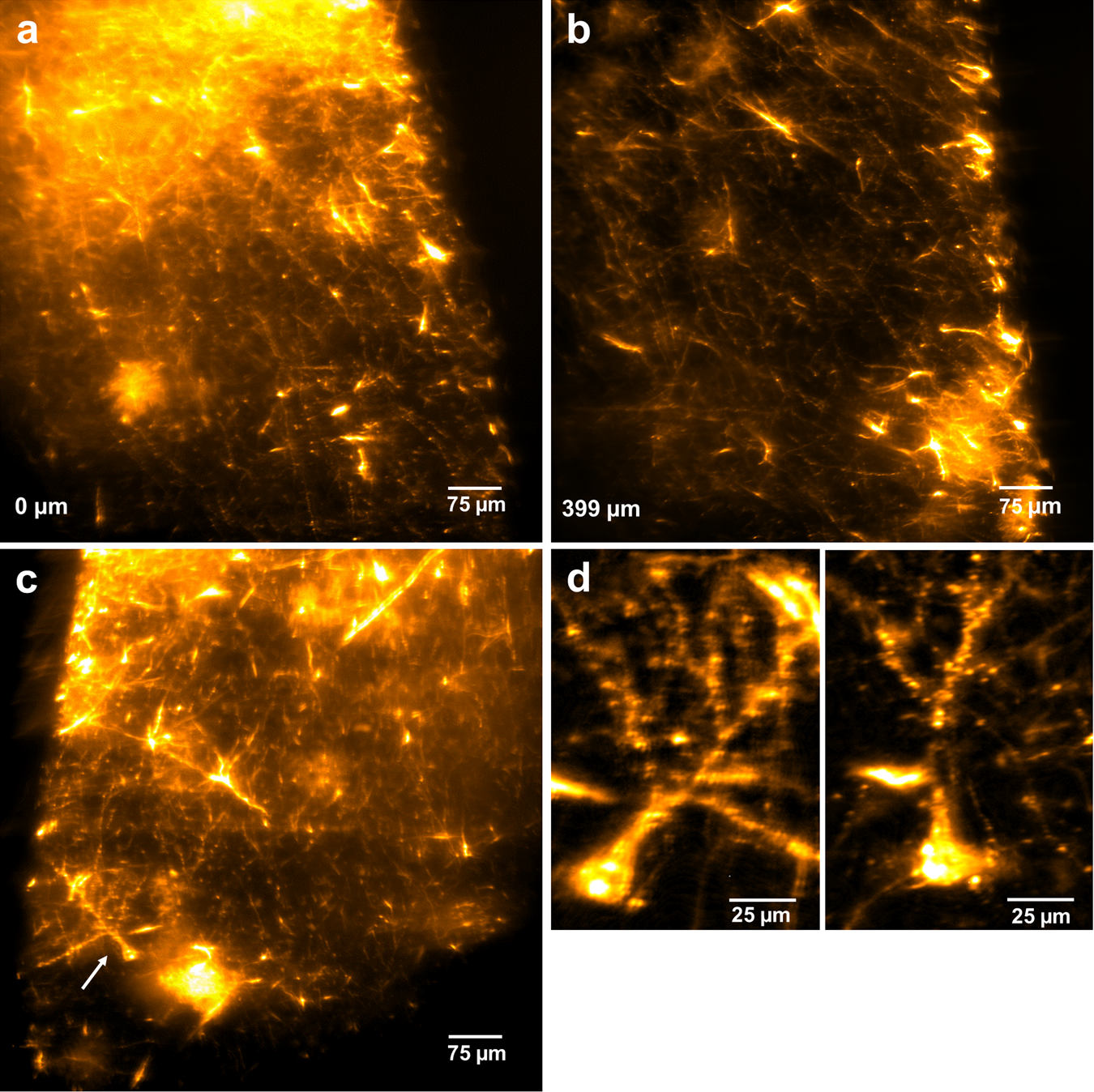

Light sheet microscopy of DiI-stained human amygdala. (a) The DiI label in close proximity to the injection site of the crystal (upper part of the image). (b) Label of individual fibres 400 µm lateral from the injection site was well preserved. (c) The staining quality after clearing was good enough to clearly distinguish labelled neurons (arrow). (d) Enlarged maximum intensity projections over 10 µm of two labelled neurons with dendrites including spine-like protrusions clearly visible.
