Figure 5
From: hFRUIT: An optimized agent for optical clearing of DiI-stained adult human brain tissue

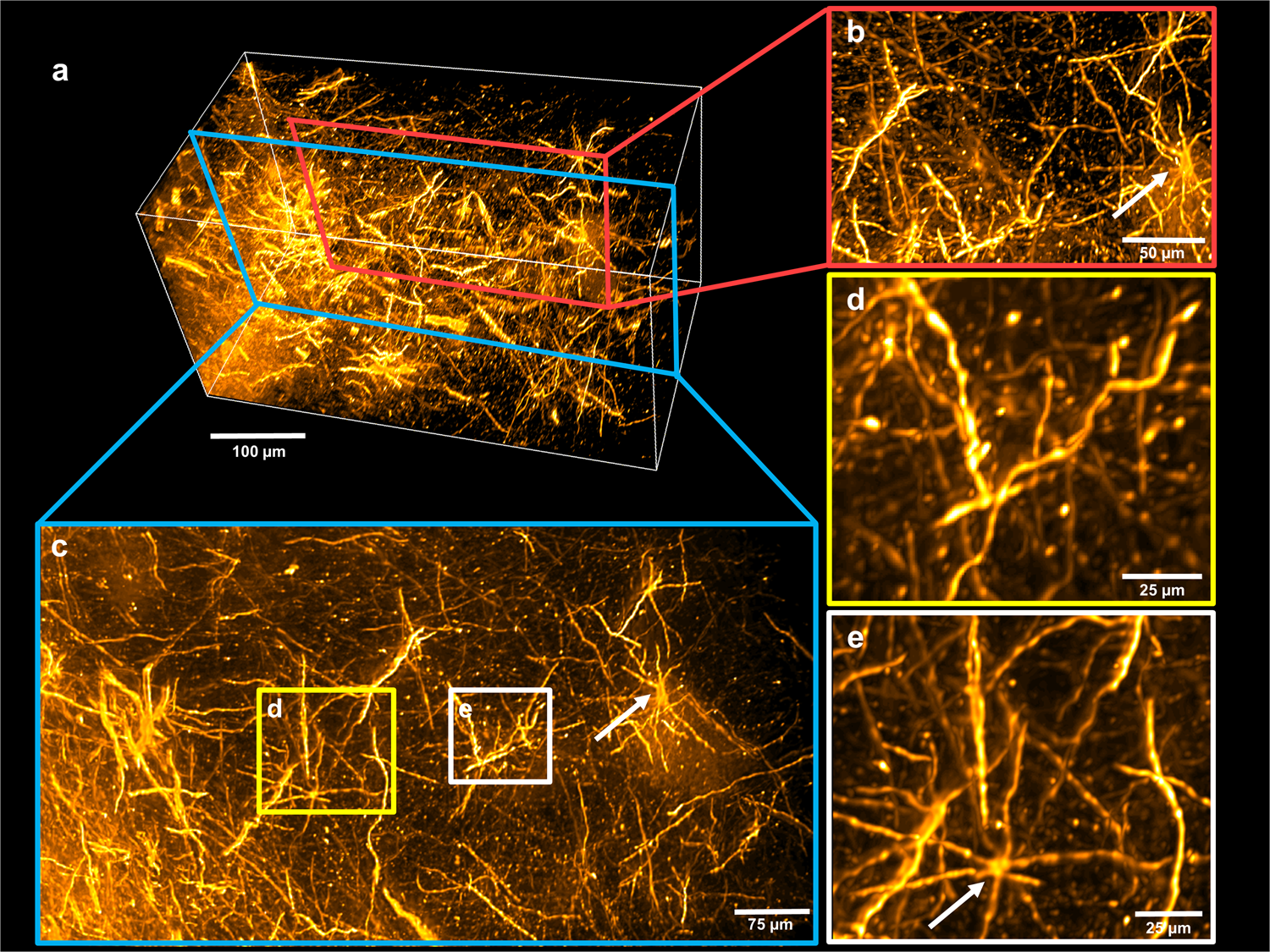

Deconvolved light sheet data. (a) 3D rendering of a sub-volume of one view. (b) Magnified view of a part of the rendering showing cell bodies (arrow) and fibres throughout the field of view. (c) Maximum intensity projection over 60 µm of the volume. (d,e) Enlarged regions of the projection showing neuron soma (arrow) and good contrast of even the smallest stained nerve fibers.
