From: Gut Microbiota Profiles of Treated Metabolic Syndrome Patients and their Relationship with Metabolic Health

Figure 3

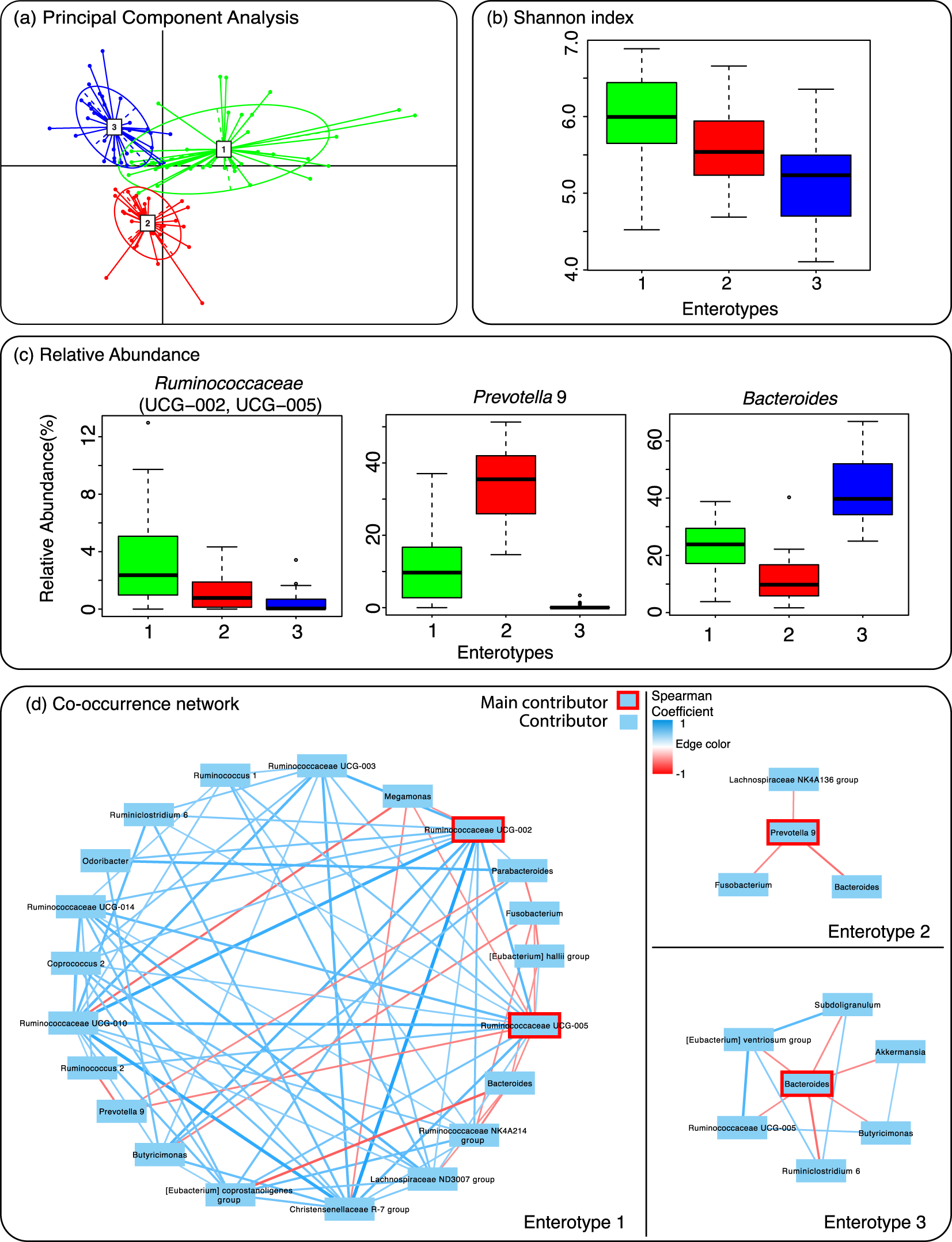

Variations in gut microbiota composition of metabolic syndrome patients. (a) Grouping of microbiota profiles based on similarity in species compositions resulted in 3 clusters or enterotypes as visualized by principal component analysis. (b) Diversity analysis using index for each enterotype of metabolic syndrome patients. (c) Relative abundance of main contributor in each enterotype. (d) Co-occurrence network of the main contributor(s) and other genera in each enterotype.
