Figure 6
From: Adipose tissue in health and disease through the lens of its building blocks

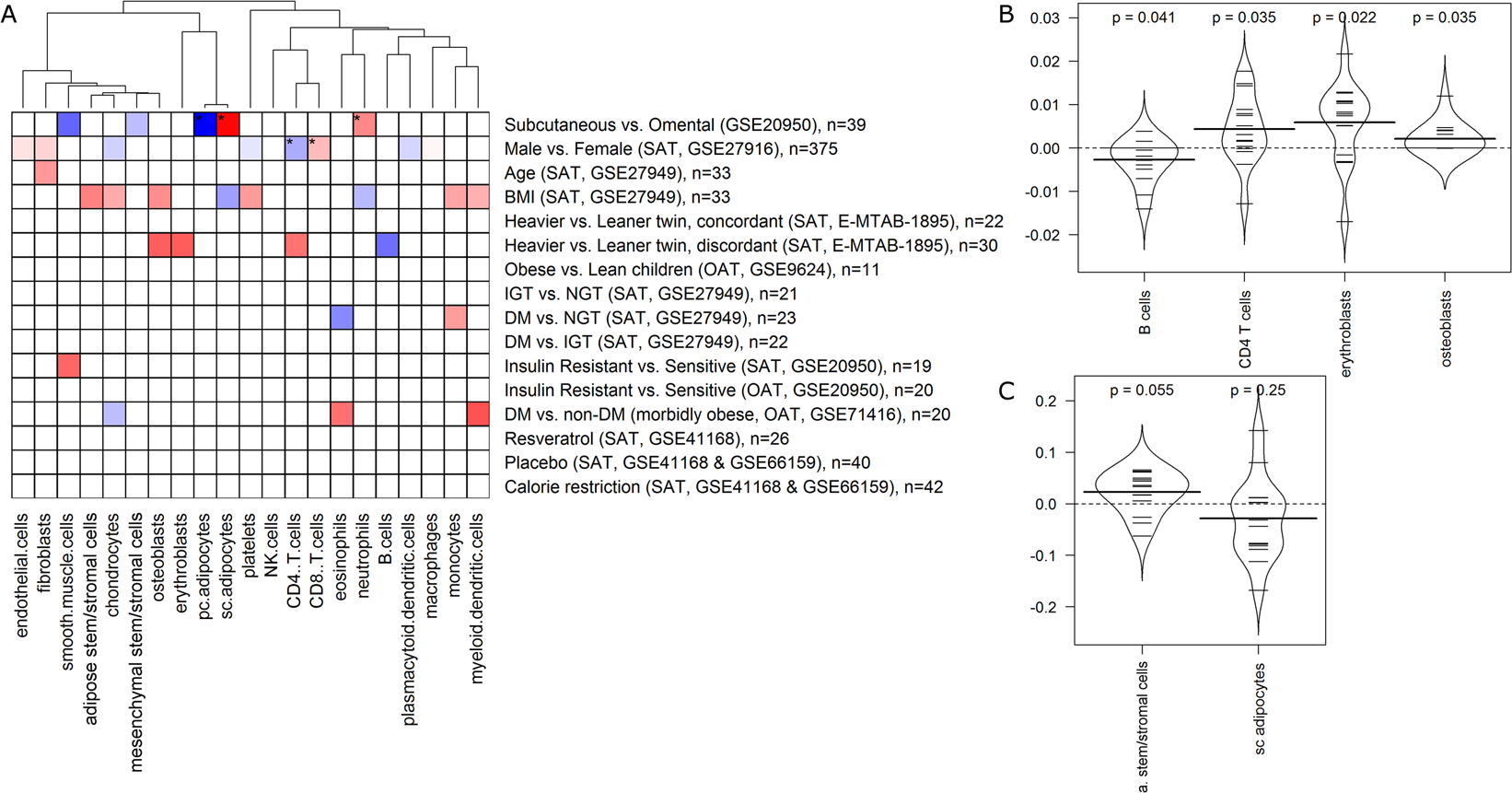

Adipose Tissue Composition Across Phenotypic Traits: (A) Heatmap showing the significant over (red)/under (blue) represented cell type across different categories based on the z-score (denotes the number of standard deviations each group is away from the other). Only significant results (uncorrected p < 0.05) are colored. Stars label results that stay significant after correction for multiple testing. The bean plots showing (B) all significant cell types and (C) ASCs and subcutaneous adipocytes (not detected as significant), for the heavier vs leaner twin, discordant study. The y axis describes differences in estimated cell fractions between the heavier and leaner twin within a twin pair.
