Figure 3

From: Far-field polarization signatures of surface optical nonlinearity in noncentrosymmetric semiconductors

Figure 3

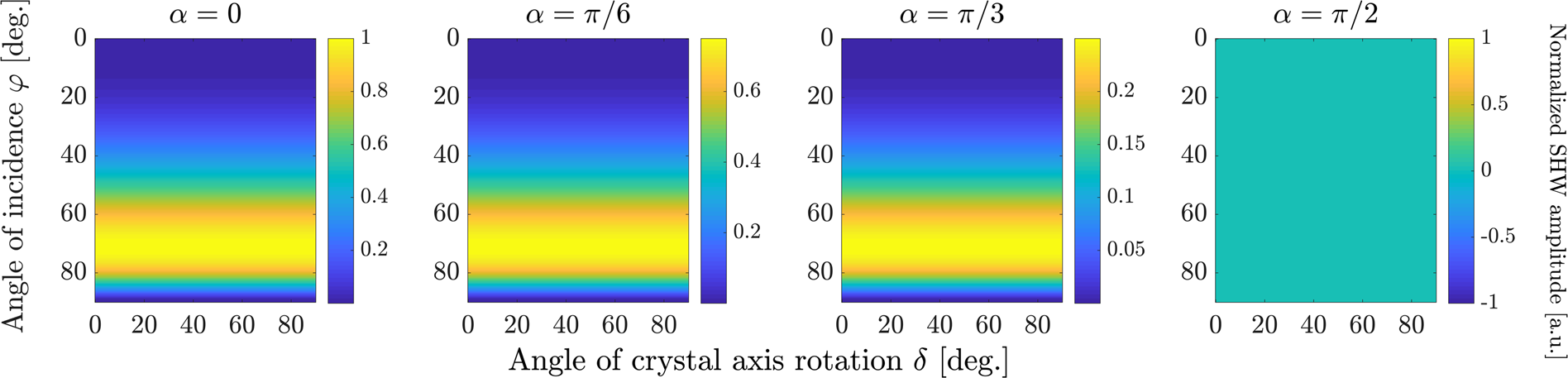

Normalized absolute values of p-polarized component of SHW amplitudes generated by surface nonlinearity, given by Eq. (5), in dependence on the angle of crystal rotation δ and the angle of incidence \(\varphi \). The different columns correspond to different polarization angles α. All subplots are normalized to the maximal value among all, which is achieved in the leftmost subplot.
