Figure 1
From: High Areal Capacity Porous Sn-Au Alloys with Long Cycle Life for Li-ion Microbatteries

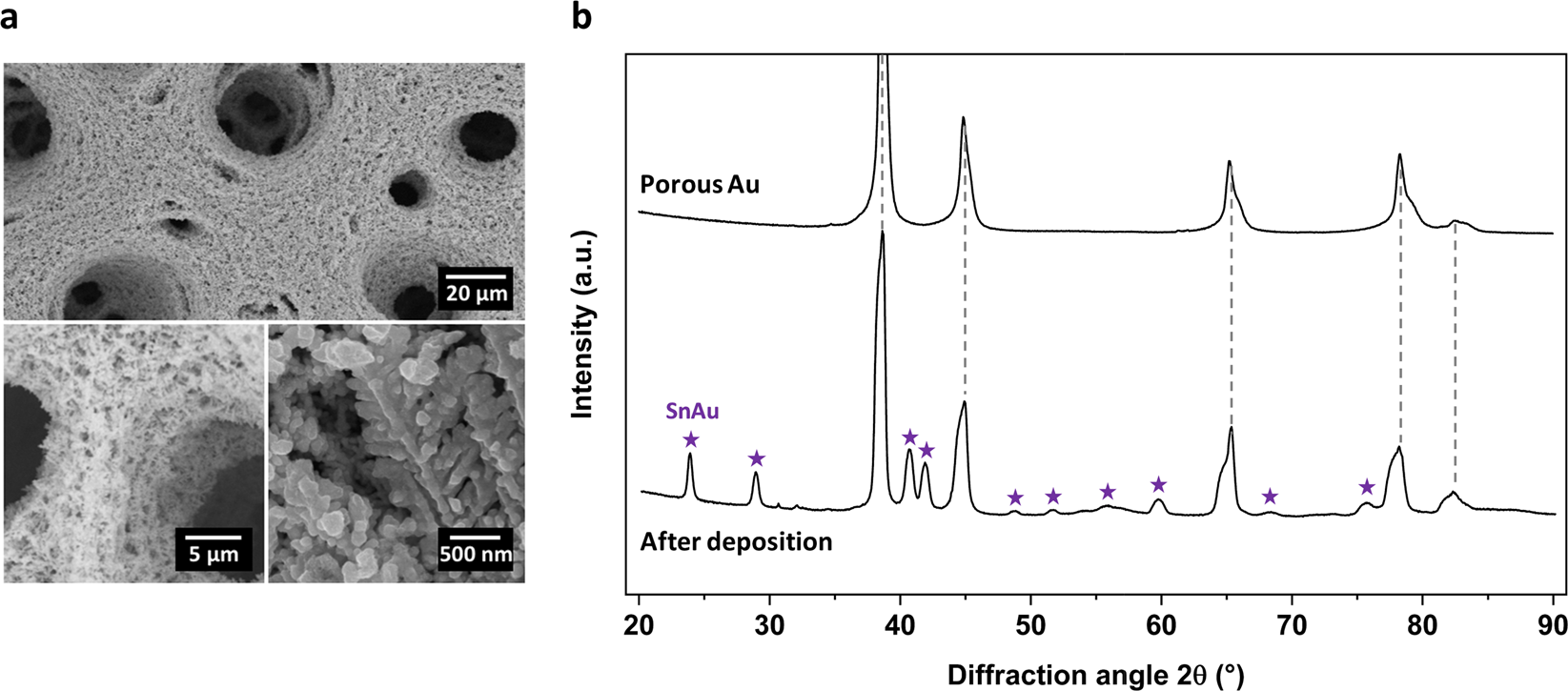

Characterization of the porous electrode. (a) SEM image after Sn electrodeposition with preservation of the highly porous structure. (b) Grazing incidence XRD pattern of the porous Au before and after Sn electrodeposition with several peaks matching SnAu alloy.
